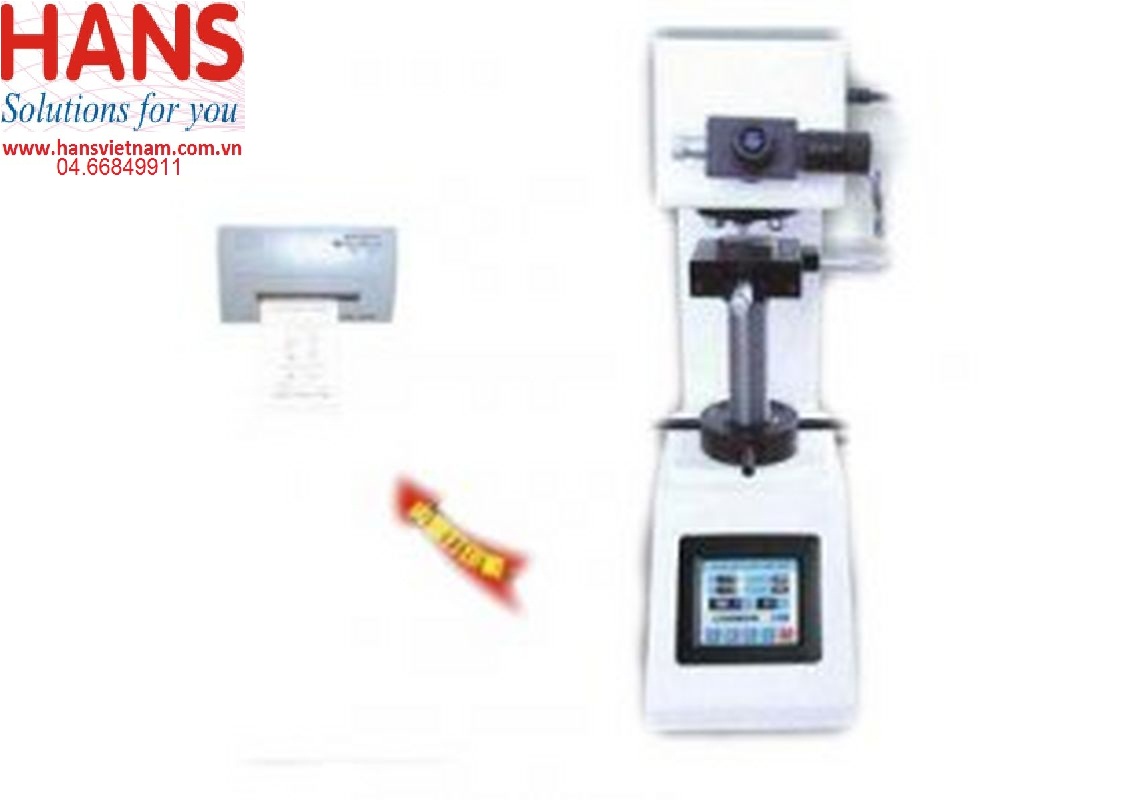

Máy thử độ cứng Vickers HUATEC XHV-50

Testing Forces

N

9.807, 19.61, 24.52, 29.42, 49.03, 98.07, 196.1, 249.2, 490.3

KGF

1, 2, 2.5, 3, 5, 10, 20, 30, 50

Carriage Control

Automatic(loading/holding-up of loading /unloading)

Holding Time

 (0~60)s

Amplification of the microscope

 100X, 200X

Min. graduation value of the test drum wheel

0.0625um

 0.125um

Testing field

 1HV~2967HV

Lens/Indenter switch

 With Motorized Turret

Dimension of the X-Y table

 Without

Movement field of the X-Y table

 Without

Max. Height of the specimen

 170mm

Max. width of the specimen

 130mm

Light source

Cold light source

Power

 110V/220V, 60/50HZ

Objective

The objective 10^x, 20^x, 40^x can be selected according to user’s requirement

Standard accessories

 Largest test table, “V”Shape test table

10^X Digital Micro Lens, Level, Adjustable Screw, Vicker Hardness Block, RS232 Interface Line (supply according to modle of instrument)

Dimension

 535X225X580mm

Weight

 Gross weight: 60Kg. Net weight:50Kg
