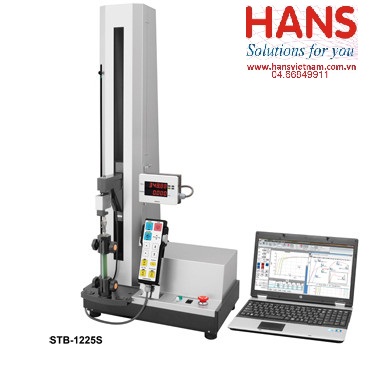

Máy thử kéo nén AND STB series

0₫

Nhà Sản Xuất AND-NHẬT BẢN
Mã Sản Phẩm STB series

Máy thử kéo nén AND STB series

Model: STB series

Hãng sản xuất: AND

Thông số kỹ thuật:

Model	STB-1225L	STB-1225S
Max. loading capacity	2.5kN (250kgf)
Effective stroke	850mm	550mm
Crosshead speed	0.05-1000mm/min. (0.01mm/min.)
Crosshead random speed	Set with 0.01 mm/min. step
Crosshead speed accuracy	+/-0.5%
Return speed	1000mm/min. or 500mm/min.
Crosshead manual operation	Position the crosshead first using UP/DOWN switches & use manual button to adjust fine position.
Dimensions	470 x 335 x 1450 mm	470 x 335 x 1050 mm
Weight	56kg	43kg

Máy thử kéo nén AND STB series

Model: STB series

Hãng sản xuất: AND

Thông số kỹ thuật:

Model	STB-1225L	STB-1225S
Max. loading capacity	2.5kN (250kgf)
Effective stroke	850mm	550mm
Crosshead speed	0.05-1000mm/min. (0.01mm/min.)
Crosshead random speed	Set with 0.01 mm/min. step
Crosshead speed accuracy	+/-0.5%
Return speed	1000mm/min. or 500mm/min.
Crosshead manual operation	Position the crosshead first using UP/DOWN switches & use manual button to adjust fine position.
Dimensions	470 x 335 x 1450 mm	470 x 335 x 1050 mm
Weight	56kg	43kg
