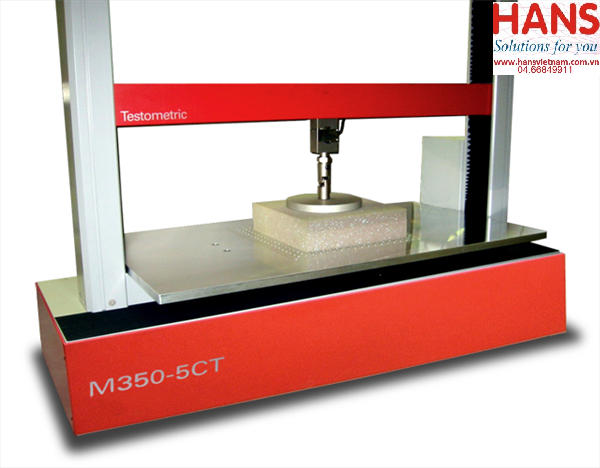

Máy thử kéo nén Testometric M350-5CT

Máy thử kéo nén Testometric M350-5CT

Model: M350-5CT

Hãng sản xuất: Testometric

Thông số kỹ thuật:

A special wide frame machine for testing foam and seating. Used extensively in the automotive seat and furniture industry. The machine has special internal software for conducting multiple stage cyclic and indentation hardness testing.

FORCE MEASUREMENTS

Universally Calibrated, better than Grade 0.5 EN 7500-1, DIN 51221 ASTM E-4. AFNOR A03-501. Range 0.4% to 100% minimum. Automatic identification of load cell. Resolution 1 part in 500000 with autoranging. Electronic load cell protection.

EXTENSION MEASUREMENTS

Full frame length to 0.001mm. Resolution 0.001 min. Accuracy 0.01mm. Absolute, relative and auxiliary modes mm, inch and percent. Programmable extension limits.

SPEED CONTROL

Drive system temperature and current protection. Positional jog speed 0.001mm/min to maximum. Speed setting increments 0.001mm/min.

LOAD FRAME

Rigid frame, using dual slide crosshead guidance system and rigid extruded support column. Frame stiffness 5kN/mm plus K factor facility built-in. Re-circulating ball screw with bellows. Electronic limit trips, total travel trips and customer programmable safety stops. Rubber mat front protection.
