Micro panel Eaton XV-102

0₫

Nhà Sản Xuất Eaton
Mã Sản Phẩm Micro panel

Mô tả
Bình luận

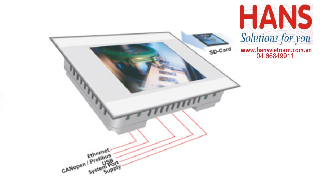

Micro panel Eaton XV-102

Model: XV-102

Hãng sản xuất: Eaton

Thông số kỹ thuật:

Processor RISC CPU, 32 Bit, 400MHz

OS, program and data memory 64MB

Display: 3.5" TFT (monochrome), 32 grayscales

without retain data memory (no PLC functionality possible)

1 x SD memory card slot

Integrated interfaces:

Ethernet 10/100

Software (development):

Visualization = GALILEO (also possible with: WebVisu)

PLC = no PLC function possible

Basic device with 140 license points enables communication to the value of 40 points via an onboard interface. Additional communication options → Licensing.

WinCE 5.0 Core license included in delivery

Optional SD Memory Card → Accessories

Article no.	Description	Additional interface
141759	XV-102-A0-35MQR-10	-
141820	XV-102-A2-35MQR-10	Profibus
141821	XV-102-A3-35MQR-10	RS232
141822	XV-102-A4-35MQR-10	RS485
141823	XV-102-A5-35MQR-10	RS232, CAN

Tags: PLC Control Systems

Mô tả

Micro panel Eaton XV-102

Model: XV-102

Hãng sản xuất: Eaton

Thông số kỹ thuật:

Processor RISC CPU, 32 Bit, 400MHz

OS, program and data memory 64MB

Display: 3.5" TFT (monochrome), 32 grayscales

without retain data memory (no PLC functionality possible)

1 x SD memory card slot

Integrated interfaces:

Ethernet 10/100

Software (development):

Visualization = GALILEO (also possible with: WebVisu)

PLC = no PLC function possible

Basic device with 140 license points enables communication to the value of 40 points via an onboard interface. Additional communication options → Licensing.

WinCE 5.0 Core license included in delivery

Optional SD Memory Card → Accessories

Article no.	Description	Additional interface
141759	XV-102-A0-35MQR-10	-
141820	XV-102-A2-35MQR-10	Profibus
141821	XV-102-A3-35MQR-10	RS232
141822	XV-102-A4-35MQR-10	RS485
141823	XV-102-A5-35MQR-10	RS232, CAN

Tags: PLC Control Systems
