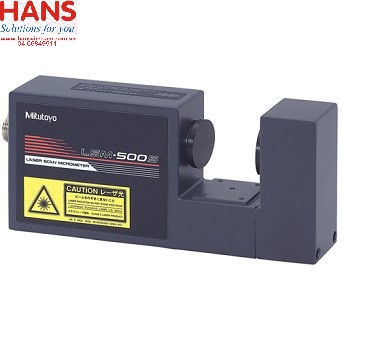

Micrometer quét Laser Mitutoyo LSM-500S

0₫

Nhà Sản Xuất Mitutoyo - Japan
Mã Sản Phẩm LSM-500S

Micrometer quét Laser Mitutoyo LSM-500S

Model: LSM-500S

Hãng sản xuất: Mitutoyo

Thông số kỹ thuật:

Model No.	LSM-500S	LSM-501S	LSM-503S
Package No.	64PKA117	64PKA118	64PKA119
Main Unit No.	544-532	544-534	544-536
Applicable display unit	LSM-6200	LSM-6200	LSM-6200
Measuring Range	.0002-0.08in 0.005-2mm *1]	.002-0.4in 0.05-10mm *1]	.012-1.18in 0.3-30mm *1]
Repeatability	.0000012in 0.03um *3]	.0000016in 0.04um *3]	.0000044in 0.11um *3]
Positional Error [2][5]	.000016in 0.4um	.00002in 0.5um	.00002in 1um
Linearity[*2]	.000012in 0.3µm *4]	.00002in 0.5µm *4]	.00004in 1µm *4]
Measuring region	.04x.08in 1x2mm	.08x.4in 2x10mm	.08x.4in 10x30mm
Laser scanning rate	2992in/s 76m/s	4449in/s 113m/s	4449in/s 113m/s
Protection level	IP64	IP64	IP64
Enviroment	Operation environment Temperature 0°C to 40°C Humidity 35%RH to 85%RH without condensation] Altitude 2000m or less Storage environment Temperature -15°C to 55°C Humidity 35%RH to 85%RH	Operation environment Temperature 0°C to 40°C Humidity 35%RH to 85%RH without condensation] Altitude 2000m or less Storage environment Temperature -15°C to 55°C Humidity 35%RH to 85%RH	Operation environment Temperature 0°C to 40°C Humidity 35%RH to 85%RH without condensation] Altitude 2000m or less Storage environment Temperature -15°C to 55°C Humidity 35%RH to 85%RH

Micrometer quét Laser Mitutoyo LSM-500S

Model: LSM-500S

Hãng sản xuất: Mitutoyo

Thông số kỹ thuật:

Model No.	LSM-500S	LSM-501S	LSM-503S
Package No.	64PKA117	64PKA118	64PKA119
Main Unit No.	544-532	544-534	544-536
Applicable display unit	LSM-6200	LSM-6200	LSM-6200
Measuring Range	.0002-0.08in 0.005-2mm *1]	.002-0.4in 0.05-10mm *1]	.012-1.18in 0.3-30mm *1]
Repeatability	.0000012in 0.03um *3]	.0000016in 0.04um *3]	.0000044in 0.11um *3]
Positional Error [2][5]	.000016in 0.4um	.00002in 0.5um	.00002in 1um
Linearity[*2]	.000012in 0.3µm *4]	.00002in 0.5µm *4]	.00004in 1µm *4]
Measuring region	.04x.08in 1x2mm	.08x.4in 2x10mm	.08x.4in 10x30mm
Laser scanning rate	2992in/s 76m/s	4449in/s 113m/s	4449in/s 113m/s
Protection level	IP64	IP64	IP64
Enviroment	Operation environment Temperature 0°C to 40°C Humidity 35%RH to 85%RH without condensation] Altitude 2000m or less Storage environment Temperature -15°C to 55°C Humidity 35%RH to 85%RH	Operation environment Temperature 0°C to 40°C Humidity 35%RH to 85%RH without condensation] Altitude 2000m or less Storage environment Temperature -15°C to 55°C Humidity 35%RH to 85%RH	Operation environment Temperature 0°C to 40°C Humidity 35%RH to 85%RH without condensation] Altitude 2000m or less Storage environment Temperature -15°C to 55°C Humidity 35%RH to 85%RH
