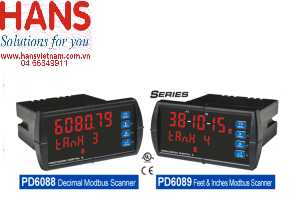

Modbus scanner Precision Digital PD6080

Modbus scanner Precision Digital PD6080

Model: PD6080

Hãng sản xuất: Precision Digital

Thông số kỹ thuật:

Modbus® RS-485 RTU Serial Communications as Master, Slave, or Snooper

RS-485 Serial Communications Standard

Decimal or Feet & Inches (with Eighths & Sixteenths) Display Options

Scan up to 16 Modbus Process Variables

Dual Analog Inputs
(0-20 mA, 4-20 mA, 0-5 V, 1-5 V, and ±10 V)

Addition, Difference, Average, Multiplication, Division, Min, Max, Weighted Average, Ratio, Concentration, & More

Large Dual-Line 6-Digit Display, 0.60" & 0.46"

Sunlight Readable Display Standard

NEMA 4X, IP65 Front

Universal 85-265 VAC, or 12/24 VDC Input Power Models

Isolated 24 VDC @ 200 mA Transmitter Power Supply

Programmable Display & Function Keys

32-Point, Square Root, or Exponential Linearization

Multi-Pump Alternation Control

2 or 4 Relays + Isolated 4-20 mA Output Options

External 4-Relay & Digital I/O Expansion Modules

Configure, Monitor, and Datalog from a PC with
Free ScanView Software
