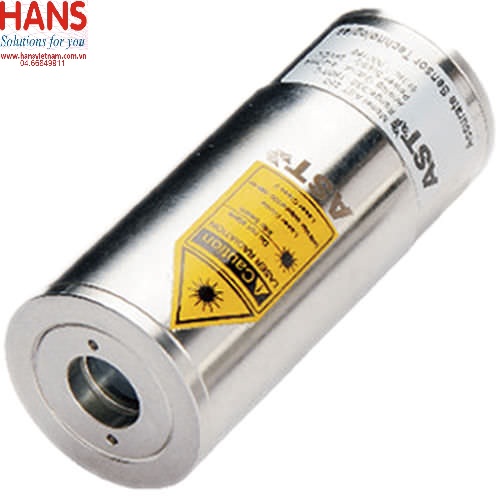

Nhiệt kế bức xạ Accurate Sensor Technology AL30

Nhiệt kế bức xạ Accurate Sensor Technology AL30

Model: AL30

Hãng sản xuất: Accurate Sensor Technology

Thông số kỹ thuật:

AST AL30 model provides the advantage of noncontact temperature measurement on non-metallic surfaces & also on painted, coated or anodized metals. AST AL30 is designed for easy integration into standard 4 wire system. This format combines the high accuracy of digital signal processing with the simple connection. The AST AL30 pyrometer is used for target temperature ranging from 0°C to 1000°C. The electronic assembly is protected by IP 65 rugged stainless steel housing.

AST AL30 is provided with USB 2.0 connector with cable. The pyrometer can be powered through USB port. In this case no external power supply is required (+24V DC requires for operation of analog output laser on and RS-232 / RS-485 output).

Standard Scope of supply

AST AL30 with laser targeting light, USB output, USB Cable, 5M Connection Cable, 1.5M Communication Cable.

Product Features

Highly Accurate due to digital linearization of the output

Four wire form with analog output 4 to 20mA or 0 to 20mA or 0 to 10V

Serial communication RS-232 or RS-485

Response time 60 ms

Very good stability

Laser Targeting

Applications

Fluids

Rubber

Ceramic

Wood

Glass

Coated metals

Textiles
