Nhiệt kế bức xạ Accurate Sensor Technology AST E250PL & AST E450PL

Nhiệt kế bức xạ Accurate Sensor Technology AST E250PL & AST E450PL

Model: AST E250PL & AST E450PL

Hãng sản xuất: Accurate Sensor Technology

Thông số kỹ thuật:

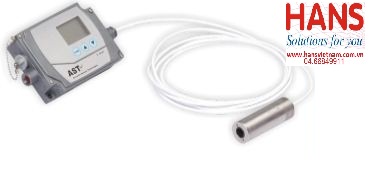

The AST E250 PL & AST E450 PL is a highly accurate digital pyrometer with extended sensor head and cable for non-contact temperature measurement on metal, ceramics, graphite etc between 250°C and 1900°C

The sensor head is un-effected by electromagnetic interferences (example induction). The pyrometer is equipped with a display which shows in measuring mode the current temperature. Additionally all parameters can be read and changed via integrated keys.

AST E250 PL & E450 PL is provided with USB 2.0 connector with cable. The pyrometer can be powered through USB port. In this case no external power supply is required (+24V DC requires for operation of analog output, LED RS-232 / RS-485 and relay output).

Analog output is 4...20mA or 0...20mA or 0... 10V (user selectable)

Standard Scope of supply

AST E250 PL & E450 PL, with LED Targeting Light, LCD Display and keypad for parameterizing, sensor head with 3 m cable, USB Output, 1 Relay Output, USB Cable.

Product Features

Wide temperature range (250°C to 1900°C)

In built LCD

LED Light for targeting (Laser as optional)

Parameter can be adjusted via integrated keypad or interface

RS-232 / RS-485 Isolated (Optional)

USB 2.0

Relay output

Optional

Sensor head extention cable(upto 15 m)

RS-232 / RS-485 interface and software for data logging

Laser targeting
