PLC with Touchscreen Graphic HMI & Snap-in I/O Modules Unitronics V230-13-B20B

PLC with Touchscreen Graphic HMI & Snap-in I/O Modules Unitronics V230-13-B20B

Model: V230-13-B20B

Hãng sản xuất: Unitronics

Thông số kỹ thuật:

V23013B20B A Kontroller V230 CAN EXP 2*RS232 12/24VDC

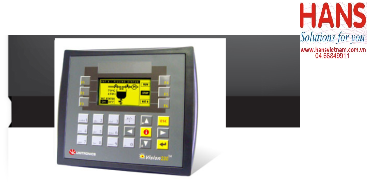

The Vision230™ is a powerful PLC with a built-in HMI Operator Panel comprising a 128 x 64 pixel graphic display and a customizable keyboard. On-board I/Os can be added by simply snapping a module onto the back of the PLC; Snap-in I/O Modules come in several configurations. I/O Expansion modules enable integrating up to 316 I/Os per Vision PLC.
The Vision230™ offers a rich range of embedded features such as multiple auto-tuned PID loops, internal 120K structured data table and loadcell support. Communication options include TCP/IP, Ethernet, GSM/SMS, MODBUS, CANbus networking, function blocks that enable Vision to communicate with devices using proprietary COM protocols, plus remote access and data export software utilities. 1MB-Ladder code application memory enables the Vision230™ to run complex control and automation tasks. The Graphic HMI display screen can show images, text, and graphs according to real-time parameters. It can also display graphs based on historical values, to reflect trends of recorded data. Vision supports up to 255 user-designed screens, and up to 24 HMI variables per screen.
Benefit from the power of combined PLC and a graphic HMI – at an unbeatable price-performance ratio.
Our PLC/HMI integrated devices:

Save our customers’ programming time, wiring, and cabinet space.

Cut budget by reducing requirements for additional hardware.

Prevent you from wasting time setting up Panel-PLC communication.
