Plug & test adapter Mark 10 PTA

Plug & test adapter Mark 10 PTA

Model: PTA

Hãng sản xuất: Mark 10

Thông số kỹ thuật:

Sensor capacity and resolutions may be programmed via an included software utility, which includes a library of common force capacities from 0.12 to 750,000 lbF (0.5 N to 4,000 kN), and torque capacities from 10 ozFin to 40,000 lbFft (7 Ncm to 57,000 Nm). An identification number may be programmed, which is displayed upon indicator power-up or the indicator's Information screen

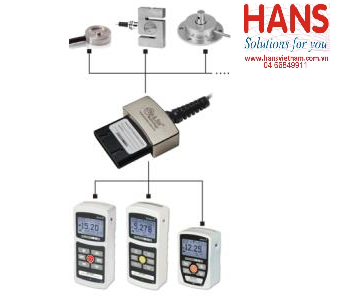

Compatible with strain gage-based load cells, force sensors, and torque sensors

Screw terminal block allows for easy connection of sensor wires

Software configuration utility is included, for easy programming of sensor capacity, resolution, and identification number

Program the adapter via USB or RS-232 through the indicator

Supplied with a strain relief, user-writeable identification label, and Resource CD with software

Sensor Requirements:

Type: Full bridge

Resistance: 300 - 1000 ohms

Sensitivity: 1-3 mV/V
