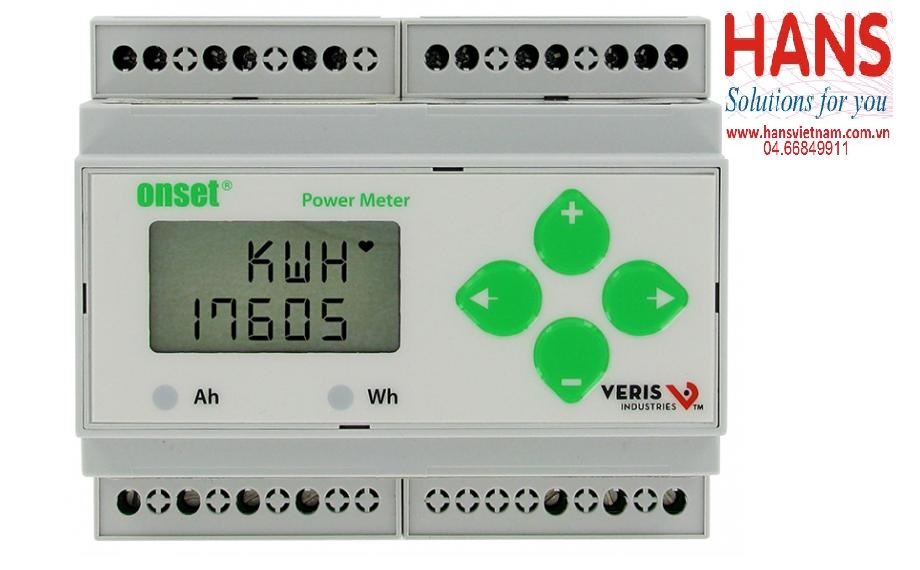

Power Meter 600VAC 3-Pulse Output Data Loggers Onset Hobo T-VER-E50B2

Real Power and Energy:

IEC 62053-22 Class 0.5S, ANSI C12.20 0.5%

Reactive Power and Energy:

IEC 62053-23 Class 2, 2%

Current:

0.4% (+0.015% per °C deviation from 25°C) from 5% to 100% of range;
0.8% (+0.015% per °C deviation from 25°C) from 1% to 5% of range

Voltage:

0.4% (+0.015% per °C deviation from 25°C) from 90V (L-N) to 600VAC (LL)

Sample Rate:

2520 samples per second

Data Update Rate:

1 sec

Type of Measurements:

True RMS up to the 21st harmonic 60 Hz, One to three phase AC system

Input Voltage Characteristics:

Measured AC Voltage:

Minimum 90VL-N (156VL-L) for stated accuracy
UL Maximums: 600VL-L (347VL-N)
CE Maximums: 300VL-N (520V L-L)

Metering Over Range:

+20%

Impedance:

2.5 MΩ (L-N)/5 MΩ (L-L)

Frequency Range:

45 to 65 Hz

Input Current Characteristics:

CT Scaling:

Primary: Adjustable from 5 A to 32,000 A

Measurement Input Range:

0 to 0.333VAC or 0 to 1.0VAC (+20% over-range)

Impedance:

10.6kΩ (1/3 V mode) or 32.1kΩ (1 V mode)

Output:

Alarm Contacts:

N.C., static output (30VAC/DC, 100mA max. @ 25°C, derate 0.56mA per °C above 25°C)

Real/Reactive Energy
Pulse Contacts:

N.O., static output (30VAC/DC, 100mA max. @ 25°C,
derate 0.56mA per °C above 25°C)

Mechanical Characteristics:

Weight:

0.62 lb (0.28 kg)

IP Degree of Protection (IEC 60529):

IP40 front display; IP20 Meter

Display Characteristics:

Back-lit blue LCD

Terminal Block Screw Torque:

0.37 ft•lb (0.5 N•m) nominal/0.44 ft-lb (0.6 N•m) max

Terminal Block Wire Size:

26 to 14 AWG (0.13 to 2.08 mm2)

Rail:

T35 (35mm) DIN Rail per EN50022
