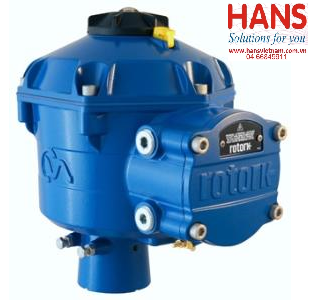

Process Control Actuators Rotork CVQ Quarter Turn

Process Control Actuators Rotork CVQ Quarter Turn

Model: CVQ Quarter Turn

Hãng sản xuất: Rotork

Thông số kỹ thuật:

The Rotork CVQ quarter-turn, electric process control actuator, offers a highly accurate and responsive method of automating control valves, without the complexity and cost of a pneumatic supply. With an increased focus on production costs and efficiency, accurate control of product through the pipeline is paramount. With resolution figures better than 0.1% and the ability to eliminate position overshoot, the Rotork CVQ helps to maximise product quality and plant capacity.

The CVQ delivers a range of sizes suitable for almost all quarter-turn control valve applications requiring highly accurate positioning. It offers end users high standards in performance, build quality and overall value.

Single-Phase or Direct Current power supplies

Quarter-turn drive action

On-board datalogger included as standard

Bluetooth compatible for local setup / control and diagnostics

Accurate and repeatable positional control using 4-20 mA signal

Digital communication options including HART, Profibus and Foundation Fieldbus

Direct torque / thrust measurement for protection and monitoring

Scalable control input characterisation

Configurable fail-to-position option using supercapacitor technology

Optional Intrinsically Safe control inputs and feedback outputs

Continuous unrestricted modulation duty – S9

Watertight IP68 and explosionproof enclosures

Optional manual override.
