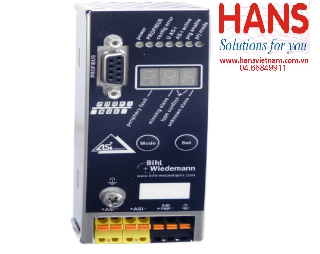

Profibus AS-i Bihl+Wiedemann BWU1569

0₫

Nhà Sản Xuất Bihl+Wiedemann
Mã Sản Phẩm BWU1569

Profibus AS-i Bihl+Wiedemann BWU1569

Model: BWU1569

Hãng sản xuất: Bihl+Wiedemann

Thông số kỹ thuật:

Type	PROFIBUS AS-i
Model	Gateway
Protection rating	IP20
Fieldbus interface	PROFIBUS
Number of AS-i networks, number of AS-i Master	2 AS-i networks, 2 AS-i Masters
1 power supply, 1 gateway for 2 AS-i networks, inexpensive power supplies	yes, max. 4A/AS-i network
Diagnostic and configuration interface	RS 232
Recognition of duplicate AS-i addresses	yes
AS-i fault detector	yes
Programming in C	no
Inputs digital, EDM	-
Inputs safety, expandable to	-
Outputs Safety, SIL 3, cat. 4	-
Safety outputs, independent according to SIL 3, expandable to	-
Safety communication	-

Profibus AS-i Bihl+Wiedemann BWU1569

Model: BWU1569

Hãng sản xuất: Bihl+Wiedemann

Thông số kỹ thuật:

Type	PROFIBUS AS-i
Model	Gateway
Protection rating	IP20
Fieldbus interface	PROFIBUS
Number of AS-i networks, number of AS-i Master	2 AS-i networks, 2 AS-i Masters
1 power supply, 1 gateway for 2 AS-i networks, inexpensive power supplies	yes, max. 4A/AS-i network
Diagnostic and configuration interface	RS 232
Recognition of duplicate AS-i addresses	yes
AS-i fault detector	yes
Programming in C	no
Inputs digital, EDM	-
Inputs safety, expandable to	-
Outputs Safety, SIL 3, cat. 4	-
Safety outputs, independent according to SIL 3, expandable to	-
Safety communication	-
