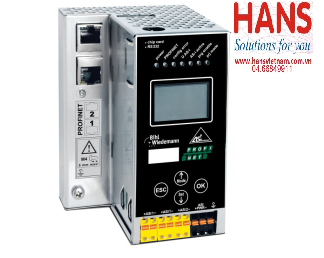

Profinet AS-i Bihl+Wiedemann BWU2239

0₫

Nhà Sản Xuất Bihl+Wiedemann
Mã Sản Phẩm BWU2239

Profinet AS-i Bihl+Wiedemann BWU2239

Model: BWU2239

Hãng sản xuất: Bihl+Wiedemann

Thông số kỹ thuật:

Type	PROFINET AS-i
Model	Gateway
Protection rating	IP20
Fieldbus interface	PROFINET
Number of AS-i networks, number of AS-i Master	2 AS-i networks, 2 AS-i Masters
1 power supply, 1 gateway for 2 AS-i networks, inexpensive power supplies	no, max. 8A/AS-i network, redundant supply
Diagnostic and configuration interface	Ethernet fieldbus + RS 232
Recognition of duplicate AS-i addresses	yes
AS-i fault detector	yes
Programming in C	optional
Inputs digital, EDM	-
Inputs safety, expandable to	-
Outputs Safety, SIL 3, cat. 4	-
Safety outputs, independent according to SIL 3, expandable to	-
Safety communication	-

Profinet AS-i Bihl+Wiedemann BWU2239

Model: BWU2239

Hãng sản xuất: Bihl+Wiedemann

Thông số kỹ thuật:

Type	PROFINET AS-i
Model	Gateway
Protection rating	IP20
Fieldbus interface	PROFINET
Number of AS-i networks, number of AS-i Master	2 AS-i networks, 2 AS-i Masters
1 power supply, 1 gateway for 2 AS-i networks, inexpensive power supplies	no, max. 8A/AS-i network, redundant supply
Diagnostic and configuration interface	Ethernet fieldbus + RS 232
Recognition of duplicate AS-i addresses	yes
AS-i fault detector	yes
Programming in C	optional
Inputs digital, EDM	-
Inputs safety, expandable to	-
Outputs Safety, SIL 3, cat. 4	-
Safety outputs, independent according to SIL 3, expandable to	-
Safety communication	-
