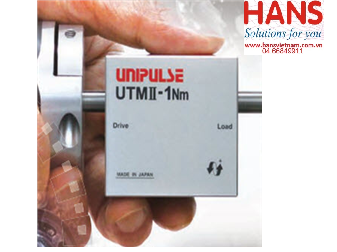

Rotary torque meter Unipulse UTM II

Rotary torque meter Unipulse UTM II

Model: UTM II

Hãng sản xuất: Unipulse

Thông số kỹ thuật:

Measurement range: 0.05Nm,0.1Nm,0.2Nm,0.5Nm,1Nm,2Nm,5Nm,10Nm,20Nm,50Nm,100Nm,200Nm,500Nm,1000Nm,2000Nm,5000Nm,10000Nm
Analogue bandwidth 1kHz with high speed sampling rate of 6kHz.
Safe overload: 500%
4 pulse output per rotation (used to be 1 ppr).
Noise immunity has been greatly improved.
Measure small torque with high accuracy
Enable torque ripple measurement
Built-in low-drift voltage amplifier
Power supply DC24V
No external amplification necessary ±5V analog output voltage
Maximum rotation speed 20000rpm※
Slip-ring-less = maintenance-free.
20Nm,50Nm,100Nm,200Nm,500Nm,1000Nm,2000Nm,5000Nm,10000Nm differs in the maximum rotation speed
