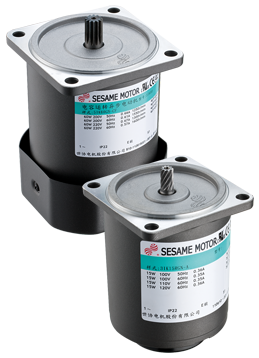

AC Induction Motors Specifications
6W AC Induction Motors Specifications
| Model |
Output
(W) |
Voltage
(V) |
Freq.
(Hz) |
Pole
(P) |
Rated Speed
(rpm) |
Rated Time |
Starting Torque
(Kg.cm) |
Rated Torque
(Kg.cm) |
Rated Current
(A) |
Capacitor
(μF) |
| 2IK6A(GN)-A |
6 |
1φ100/ 110 |
50/ 60 |
4 |
1150/ 1400 |
Continuous |
0.7/ 0.63 |
0.51/ 0.41 |
0.22/ 0.21 |
2.5/ 300V |
| 2IK6A(GN)-C |
6 |
1φ200/ 220 |
50/ 60 |
4 |
1150/ 1550 |
Continuous |
0.65/ 0.7 |
0.51/ 0.54 |
0.1/ 0.1 |
0.7/ 450V |
| 2IK6A(GN)-CE |
6 |
1φ230/ 240 |
50 |
4 |
1100/ 1200 |
Continuous |
0.74/ 0.77 |
0.55/ 0.5 |
0.11/ 0.1 |
0.7/ 450V |
15W AC Induction Motors Specifications
| Model |
Output
(W) |
Voltage
(V) |
Freq.
(Hz) |
Pole
(P) |
Rated Speed
(rpm) |
Rated Time |
Starting Torque
(Kg.cm) |
Rated Torque
(Kg.cm) |
Rated Current
(A) |
Capacitor
(μF) |
| 3IK15A(GN)-A |
15 |
1φ100/ 110 |
50/ 60 |
4 |
1200/ 1600 |
Continuous |
0.88/ 1.04 |
1.22/ 0.91 |
0.36/ 0.35 |
5/ 300V |
| 3IK15A(GN)-C |
15 |
1φ200/ 220 |
50/ 60 |
4 |
1150/ 1600 |
Continuous |
0.75/ 1.1 |
1.12/ 0.93 |
0.18/ 0.18 |
1.2/ 450V |
| 3IK15A(GN)-CE |
15 |
1φ230/ 240 |
50 |
4 |
1300/ 1300 |
Continuous |
1.06/ 1.06 |
1.14/ 1.13 |
0.17/ 0.17 |
1.2/ 450V |
25W AC Induction Motors Specifications
| Model |
Output
(W) |
Voltage
(V) |
Freq.
(Hz) |
Pole
(P) |
Rated Speed
(rpm) |
Rated Time |
Starting Torque
(Kg.cm) |
Rated Torque
(Kg.cm) |
Rated Current
(A) |
Capacitor
(μF) |
| 4IK25A(GN)-A |
25 |
1φ100/ 110 |
50/ 60 |
4 |
1250/ 1600 |
Continuous |
1.4/ 1.4 |
1.93/ 1.51 |
0.57/ 0.45 |
6/ 300V |
| 4IK25A(GN)-C |
25 |
1φ200/ 220 |
50/ 60 |
4 |
1250/ 1600 |
Continuous |
1.57/ 1.38 |
1.91/ 1.52 |
0.28/ 0.25 |
1.5/ 450V |
| 4IK25A(GN)-CE |
25 |
1φ230/ 240 |
50 |
4 |
1300/ 1300 |
Continuous |
1.38/ 1.55 |
1.9/ 1.86 |
0.25/ 0.24 |
1.5/ 450V |
| 4IK25A(GN)-S |
25 |
3φ220 |
50/ 60 |
4 |
1300/ 1550 |
Continuous |
5.12/ 4.04 |
1.89/ 1.56 |
0.22/ 0.19 |
- |
| 4IK25A(GN)-U |
25 |
3φ380 |
50/ 60 |
4 |
1200/ 1350 |
Continuous |
3.96/ 2.97 |
2.04/ 1.79 |
0.11/ 0.11 |
- |
40W AC Induction Motors Specifications
| Model |
Output
(W) |
Voltage
(V) |
Freq.
(Hz) |
Pole
(P) |
Rated Speed
(rpm) |
Rated Time |
Starting Torque
(Kg.cm) |
Rated Torque
(Kg.cm) |
Rated Current
(A) |
Capacitor
(μF) |
| 5IK40A(GN)-A |
40 |
1φ100/ 110 |
50/ 60 |
4 |
1250/ 1600 |
Continuous |
2.14/ 2.66 |
3.17/ 2.41 |
0.87/ 0.76 |
10/ 300V |
| 5IK40A(GN)-C |
40 |
1φ200/ 220 |
50/ 60 |
4 |
1300/ 1650 |
Continuous |
1.75/ 2.17 |
3.01/ 2.35 |
0.4/ 0.34 |
2.5/ 450V |
| 5IK40A(GN)-CE |
40 |
1φ230/ 240 |
50 |
4 |
1350/ 1350 |
Continuous |
2.3/ 2.58 |
2.87/ 2.84 |
0.32/ 0.32 |
2.5/ 450V |
| 5IK40A(GN)-S |
40 |
3φ220 |
50/ 60 |
4 |
1400/ 1600 |
Continuous |
10.51/ 7.83 |
2.83/ 2.4 |
0.29/ 0.27 |
- |
| 5IK40A(GN)-U |
40 |
3φ380 |
50/ 60 |
4 |
1350/ 1600 |
Continuous |
9.25/ 6.68 |
2.85/ 2.45 |
0.16/ 0.15 |
- |
60W/ 60W-GX AC Induction Motors Specifications
| Model |
Output
(W) |
Voltage
(V) |
Freq.
(Hz) |
Pole
(P) |
Rated Speed
(rpm) |
Rated Time |
Starting Torque
(Kg.cm) |
Rated Torque
(Kg.cm) |
Rated Current
(A) |
Capacitor
(μF) |
| 5IK60A(GN, GX)-AF |
60 |
1φ100/ 110 |
50/ 60 |
4 |
1200/ 1650 |
Continuous |
2.6/ 2.94 |
5.0/ 3.5 |
1.8/ 1.12 |
16/ 300V |
| 5IK60A(GN, GX)-CF |
60 |
1φ200/ 220 |
50/ 60 |
4 |
1250/ 1600 |
Continuous |
3.62/ 4.41 |
4.64/ 3.63 |
0.64/ 0.54 |
4/ 450V |
| 5IK60A(GN, GX)-CEF |
60 |
1φ230/ 240 |
50 |
4 |
1300/ 1350 |
Continuous |
4.14/ 5.22 |
4.56/ 4.4 |
0.56/ 0.55 |
4/ 450V |
| 5IK60A(GN, GX)-SF |
60 |
3φ220 |
50/ 60 |
4 |
1300/ 1550 |
Continuous |
13.72/ 10.70 |
4.47/ 3.77 |
0.41/ 0.39 |
- |
| 5IK60A(GN, GX)-UF |
60 |
3φ380 |
50/ 60 |
4 |
1400/ 1550 |
Continuous |
14.33/ 10.15 |
4.2/ 3.79 |
0.21/ 0.22 |
- |
90W AC Induction Motors Specifications
| 機型 |
Output
(W) |
Voltage
(V) |
Freq.
(Hz) |
Pole
(P) |
Rated Speed
(rpm) |
Rated Time |
Starting Torque
(Kg.cm) |
Rated Torque
(Kg.cm) |
Rated Current
(A) |
Capacitor
(μF) |
| 5IK90A(GX)-AF |
90 |
1φ100/ 110 |
50/ 60 |
4 |
1300/ 1650 |
Continuous |
4.76/ 5.86 |
6.68/ 5.33 |
1.5/ 1.41 |
22/ 300V |
| 5IK90A(GX)-CF |
90 |
1φ200/ 220 |
50/ 60 |
4 |
1300/ 1650 |
Continuous |
4.3/ 4.21 |
6.89/ 5.34 |
0.76/ 0.72 |
5/ 450V |
| 5IK90A(GX)-CEF |
90 |
1φ230/ 240 |
50 |
4 |
1350/ 1350 |
Continuous |
4.93/ 5.08 |
6.44/ 6.42 |
0.66/ 0.68 |
5/ 450V |
| 5IK90A(GX)-SF |
90 |
3φ220 |
50/ 60 |
4 |
1400/ 1650 |
Continuous |
23.3/ 18.25 |
6.4/ 5.3 |
0.7/ 0.6 |
- |
| 5IK90A(GX)-UF |
90 |
3φ380 |
50/ 60 |
4 |
1400/ 1650 |
Continuous |
23.3/ 18.14 |
6.3/ 5.3 |
0.4/ 0.3 |
