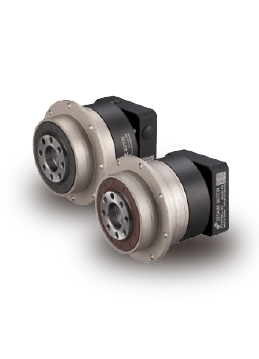

Sesame Servo Motor Gearhead - Output Flange

0₫

Nhà Sản Xuất Sesame - Taiwan
Mã Sản Phẩm Servo Motor Gearhead

Mô tả
Bình luận

Servo Motor Gearhead Output Flange
Premium Type (Helical Gear)	Precision Type (Helical Gear)

PHF Series	PGF Series

Servo Motor Gearhead Products Features
	Series	Features
Premium Type (Helical Gear)	PHF Series	Nominal Output Torque 　T_2N：11Nm - 2000Nm Ratio 　Single Stage：3/ 4/ 5/ 7/ 10 　Double Stage：15/ 20/ 25/ 30/ 35/ 40/ 50/ 70/ 100 Low Backlash 　Single Stage：≦1 arcmin/ ≦3 arcmin/ ≦5 arcmin 　Double Stage：≦３ arcmin/ ≦5 arcmin/ ≦7 arcmin High Efficiency 　Single Stage：≧97% 　Double Stage：≧94% Low Noise 　56~70 dBA/1m

Precision Type (Helical Gear)	PGF Series	Nominal Output Torque 　T_2N：11Nm - 290Nm Ratio 　Single Stage：3/ 4/ 5/ 7/10 　Double Stage：15/ 20/ 25/ 30/ 35/ 40/ 50/ 70/ 100 Low Backlash 　Single Stage：≦1 arcmin/ ≦3 arcmin/ ≦5 arcmin 　Double Stage：≦３ arcmin/ ≦5 arcmin/ ≦7 arcmin High Efficiency 　Single Stage：≧97% 　Double Stage：≧94% Low Noise 　56~63 dBA/1m

Mô tả

Servo Motor Gearhead Output Flange
Premium Type (Helical Gear)	Precision Type (Helical Gear)

PHF Series	PGF Series

Servo Motor Gearhead Products Features
	Series	Features
Premium Type (Helical Gear)	PHF Series	Nominal Output Torque 　T_2N：11Nm - 2000Nm Ratio 　Single Stage：3/ 4/ 5/ 7/ 10 　Double Stage：15/ 20/ 25/ 30/ 35/ 40/ 50/ 70/ 100 Low Backlash 　Single Stage：≦1 arcmin/ ≦3 arcmin/ ≦5 arcmin 　Double Stage：≦３ arcmin/ ≦5 arcmin/ ≦7 arcmin High Efficiency 　Single Stage：≧97% 　Double Stage：≧94% Low Noise 　56~70 dBA/1m

Precision Type (Helical Gear)	PGF Series	Nominal Output Torque 　T_2N：11Nm - 290Nm Ratio 　Single Stage：3/ 4/ 5/ 7/10 　Double Stage：15/ 20/ 25/ 30/ 35/ 40/ 50/ 70/ 100 Low Backlash 　Single Stage：≦1 arcmin/ ≦3 arcmin/ ≦5 arcmin 　Double Stage：≦３ arcmin/ ≦5 arcmin/ ≦7 arcmin High Efficiency 　Single Stage：≧97% 　Double Stage：≧94% Low Noise 　56~63 dBA/1m
