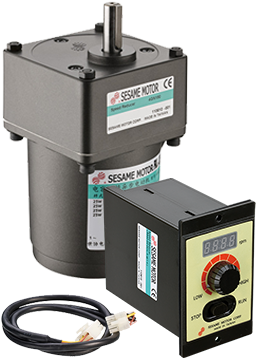

Speed Control AC Motor Specifications
6W Speed Control AC Motor Specifications
| Model |
Rated time |
Rated output
(W) |
Voltage
(V) |
Freq.
(Hz) |
Pole
(P) |
Current
(A) |
Adjustable Range
(rpm) |
Starting Torque
(Kg.cm) |
Maximum/ Pre-set Turnngins
(Kg.cm) |
| 1200rpm |
90rpm |
| M206-(0/ 4)01 |
Continuous |
6 |
100/ 110 |
50/ 60 |
4 |
0.22/ 0.21 |
90~1400/ 90~1700 |
0.7/ 0.63 |
0.4/ 0.55 |
0.72/ 0.5 |
| M206-(0/ 4)02 |
Continuous |
6 |
200/ 220 |
50/ 60 |
4 |
0.1/ 0.1 |
90~1400/ 90~1700 |
0.65/ 0.7 |
0.44/ 0.66 |
0.6/ 0.7 |
| M206-(0/ 4)02E |
Continuous |
6 |
230/ 240 |
50 |
4 |
0.11/ 0.1 |
90~1400 |
0.74/ 0.77 |
0.39/ 0.52 |
0.72/ 0.8 |
15W Speed Control AC Motor Specifications
| Model |
Rated time |
Rated output
(W) |
Voltage
(V) |
Freq.
(Hz) |
Pole
(P) |
Current
(A) |
Adjustable Range
(rpm) |
Starting Torque
(Kg.cm) |
Maximum/ Pre-set Turnngins
(Kg.cm) |
| 1200rpm |
90rpm |
| M315-(0/ 4)01 |
Continuous |
15 |
100/ 110 |
50/ 60 |
4 |
0.36/ 0.35 |
90~1400/ 90~1700 |
0.88/ 1.04 |
0.9/ 1.5 |
1.0/ 1.1 |
| M315-(0/ 4)02 |
Continuous |
15 |
200/ 220 |
50/ 60 |
4 |
0.18/ 0.18 |
90~1400/ 90~1700 |
0.75/ 1.1 |
1.1/ 1.5 |
1.0/ 1.1 |
| M315-(0/ 4)02E |
Continuous |
15 |
230/ 240 |
50 |
4 |
0.17/ 0.17 |
90~1400 |
1.06/ 1.06 |
1.40/ 1.32 |
1.02/ 1.25 |
25W Speed Control AC Motor Specifications
| Model |
Rated time |
Rated output
(W) |
Voltage
(V) |
Freq.
(Hz) |
Pole
(P) |
Current
(A) |
Adjustable Range
(rpm) |
Starting Torque
(Kg.cm) |
Maximum/ Pre-set Turnngins
(Kg.cm) |
| 1200rpm |
90rpm |
| M425-(0/ 4)01 |
Continuous |
25 |
100/ 110 |
50/ 60 |
4 |
0.57/ 0.45 |
90~1400/ 90~1700 |
1.4/ 1.4 |
2.17/ 2.5 |
1.4/ 1.4 |
| M425-(0/ 4)02 |
Continuous |
25 |
200/ 220 |
50/ 60 |
4 |
0.28/ 0.25 |
90~1400/ 90~1700 |
1.57/ 1.38 |
2.1/ 2.4 |
1.6/ 1.3 |
| M425-(0/ 4)02E |
Continuous |
25 |
230/ 240 |
50 |
4 |
0.25/ 0.24 |
90~1400 |
1.38/ 1.55 |
2.2/ 2.4 |
1.5/ 1.7 |
40W Speed Control AC Motor Specifications
| Model |
Rated time |
Rated output
(W) |
Voltage
(V) |
Freq.
(Hz) |
Pole
(P) |
Current
(A) |
Adjustable Range
(rpm) |
Starting Torque
(Kg.cm) |
Maximum/ Pre-set Turnngins
(Kg.cm) |
| 1200rpm |
90rpm |
| M540-(0/ 4)01 |
Continuous |
40 |
100/ 110 |
50/ 60 |
4 |
0.87/ 0.76 |
90~1400/ 90~1700 |
2.14/ 2.66 |
3.18/ 4.2 |
2.2/ 2.8 |
| M540-(0/ 4)02 |
Continuous |
40 |
200/ 220 |
50/ 60 |
4 |
0.4/ 0.34 |
90~1400/ 90~1700 |
1.75/ 2.17 |
3.6/ 4.2 |
1.8/ 2.1 |
| M540-(0/ 4)02E |
Continuous |
40 |
230/ 240 |
50 |
4 |
0.32/ 0.32 |
90~1400 |
2.3/ 2.58 |
4.4/ 4.6 |
2.4/ 2.6 |
60W Speed Control AC Motor Specifications
| Model |
Rated time |
Rated output
(W) |
Voltage
(V) |
Freq.
(Hz) |
Pole
(P) |
Current
(A) |
Adjustable Range
(rpm) |
Starting Torque
(Kg.cm) |
Maximum/ Pre-set Turnngins
(Kg.cm) |
| 1200rpm |
90rpm |
| M560-(0/ 4)01 |
Continuous |
60 |
100/ 110 |
50/ 60 |
4 |
1.8/ 1.12 |
90~1400/ 90~1700 |
2.6/ 2.94 |
5.6/ 6.9 |
3.5/ 4.0 |
| M560-(0/ 4)02 |
Continuous |
60 |
200/ 220 |
50/ 60 |
4 |
0.64/ 0.54 |
90~1400/ 90~1700 |
3.62/ 4.41 |
5.6/ 6.9 |
4.6/ 4.4 |
| M560-(0/ 4)02E |
Continuous |
60 |
230/ 240 |
50 |
4 |
0.56/ 0.55 |
90~1400 |
4.14/ 5.22 |
6.17/ 7.2 |
4.37/ 5.2 |
90W Speed Control AC Motor Specifications
| Model |
Rated time |
Rated output
(W) |
Voltage
(V) |
Freq.
(Hz) |
Pole
(P) |
Current
(A) |
Adjustable Range
(rpm) |
Starting Torque
(Kg.cm) |
Maximum/ Pre-set Turnngins
(Kg.cm) |
| 1200rpm |
90rpm |
| M590-(0/ 4)01 |
Continuous |
90 |
100/ 110 |
50/ 60 |
4 |
1.5/ 1.41 |
90~1400/ 90~1700 |
4.76/ 5.86 |
8.4/ 10.2 |
5/ 6.1 |
| M590-(0/ 4)02 |
Continuous |
90 |
200/ 220 |
50/ 60 |
4 |
0.76/ 0.72 |
90~1400/ 90~1700 |
4.3/ 4.21 |
8/ 8.7 |
4.4/ 4.4 |
| M590-(0/ 4)02E |
Continuous |
90 |
230/ 240 |
50 |
4 |
0.66/ 0.68 |
90~1400 |
4.93/ 5.08 |
9.8/ 10.2 |
5.2/ 5.6 |
