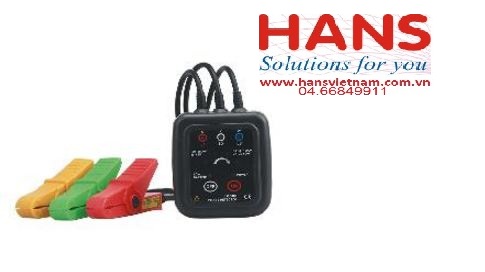

Thiết bị chỉ thị pha không tiếp xúc STARMETER ST-1000C

Thiết bị chỉ thị pha không tiếp xúc STARMETER  ST-1000C

Hãng sản suất: Starmeter  – Trung Quốc

Model: ST-1000C

Thông số kỹ thuật:

·Designed for non-contact checking of open phase, open circuit and phase sequence of electric network

·Live wire detection, line maintenance

·Breakpoint locating

·Simple power detection

·Auto power off (5 minutes)

·with magnet base for convenient placing

·High safety, easy operation

Technical Specifications:

Functions:Phase detection (normal phase, reverse phase and phase deficiency), Live wire examination, Simple Power detection, Breakpoint location and Line maintenance.

Power Supply:DC3V AA Mn batteries (R6P) ×2 PCS, Continuously working for 200 hours

AC Voltage Range(V):AC0~600V, 40~70Hz (Sine Wave Continuous Input)

Clamp Wire Size:Diameter ø1.6-ø16mm

LED Display:Positive Phase Sequence:The four phase-sequence lamps blink in order (clockwise).

                   Negative Phase Sequence:The four phase-sequence lamps blink in order (counterclockwise).

                   Line-voltage Indication:L1\L2\L3  lamp light up.

                   Default Phase:L1/L2/L3  lamp is off.

                   Open Circuit:L1/L2/L3  lamp is off.

Power On Indication:Power on indication light turns on

Auto Power off:After 3 minutes, the meter automatically cut off power supply.

Meter Dimension:Width, height, thickness 70mm*75mm*30mm

Clamp Lead Length:0.5m

Meter Weight:180g (with battery)

Working Temperature and Humidity:-10ºC~55ºC; below 80%rh

Storage Temperature and Humidity:-20ºC~60ºC; below 90%rh

Maximum Measured Voltag:AC600V

Dielectric Strength:5.4kVrms

Maximum rated Power:100mVA

Safety Provisions:EN61010-1: 2001, EN61010-031: 2002, Pollution level 2, CAT III(600V), Transient over-voltage 6000V
