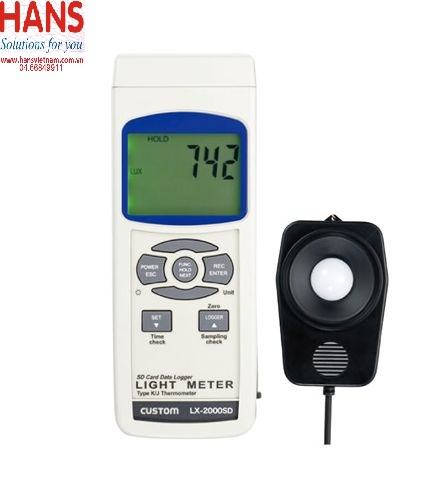

Thiết bị đo cường độ ánh sáng Custom LX-2000SD

Model: LX-2000SD

Hãng sản xuất: Custom

Thông số kỹ thuật:

Illuminance

unit	range	Display range	resolution	Measurement accuracy
lux	2,000 lux	0 ~ 1,999 lux	1 lux	± (4% + 2dgt)
	20,000 lux	1,800 ~ 19,990 lux	10 lux
	100,000 lux	18,000 ~ 99,900 lux	100 lux

Accuracy is what has been compared to the test by a tungsten lamp standard parallel light of the absolute temperature 2856K.

Temperature

Type	Measurement range	resolution	Measurement accuracy
K type	-50.0 ~ + 1300.0 ℃	0.1 ℃	± (0.4% + 0.5 ℃)
K type	-100.0 ~ -50.1 ℃	0.1 ℃	± (0.4% + 1 ℃)
J type	-50.0 ~ + 1200.0 ℃	0.1 ℃	± (0.4% + 0.5 ℃)
J type	-100.0 ~ -50.1 ℃	0.1 ℃	± (0.4% + 1 ℃)

It does not include the option of sensor accuracy in the measurement accuracy.

There is no handling of the J-type thermocouple sensor at our company.

General specification

Sensor	Silicon photo diode
Use temperature and humidity	0 ~ + 50 ℃, 85% RH or less (without condensation)
Storage temperature and humidity	-20 ~ + 60 ℃, 85% RH or less (without condensation)
Dimensions and weight	Body: W68 x H177 x D45mm, about 430g (including the battery and the illuminance sensor) Sensor: 88.5 × 58mm
Power supply	Alkaline AA batteries × 6 or AC adapter (sold separately)
Accessories	Manual, illuminance sensor, soft case
Proofreading	Yes
Option	AC adapter: VSM-932EK K-type thermocouple sensor: LK model number of the product
