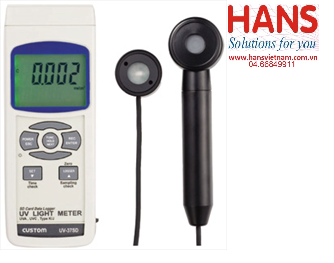

Thiết bị đo cường độ UV Custom UV-37SD
Model: UV-37SD
Hãng sản xuất: Custom
Thông số kỹ thuật:
Ultraviolet rays
|
range |
resolution |
Measurement accuracy |
UVA / UVC |
~ 1.999MW 0 / Cm 2 |
0.001MW / Cm 2 |
± (4% FS + 2dgt) |
~ 20.00MW 2.00 / Cm 2 |
0.01MW / Cm 2 |
Recommended to be measured ultraviolet wavelength
type |
wavelength |
UVA sensor |
320 ~ 380nm (calibration ultraviolet wavelength: 365nm) |
UVC sensor |
200 ~ 280nm (calibration ultraviolet wavelength: 254nm) |
Please use to measure the ultraviolet light of the wavelength of each of the sensor is above. UVC sensor ultraviolet wavelengths other than the 200 ~ 280nm to the light to be measured at the time of use were included: If you measure (for example, natural light, etc.), it may not be measured correctly.
Device using the wavelength containing UVA region (an example): tanning bed, reptiles breeding lighting, plate making lamps, black light, etc.
with a wavelength including a region of UVC device (one example): Watching Fish sterilizing filter, athlete's foot ultraviolet light therapy equipment, germicidal lamp, etc.
Temperature
type |
Measurement range |
resolution |
Measurement accuracy |
K type |
-50.0 ~ + 1300.0 ℃ |
0.1 ℃ |
± (0.2% rdg + 0.5 ℃) |
-100.0 ~ -50.1 ℃ |
± (0.2% rdg + 1 ℃) |
J type |
-50.0 ~ + 1100.0 ℃ |
0.1 ℃ |
± (0.2% rdg + 0.5 ℃) |
-100.0 ~ -50.1 ℃ |
± (0.2% rdg + 1 ℃) |
It does not include the option of sensor accuracy in the measurement accuracy.
There is no handling of the J-type thermocouple sensor at our company.
General specification
Use temperature and humidity |
0 ~ + 50 ℃, 80% RH or less (without condensation) |
Storage temperature and humidity |
-20 ~ + 60 ℃, 85% RH or less (without condensation) |
Size |
Body: W68 x H177 x D45mm,
UVA Sensor: probe head φ45 × 32mm, handle φ24 × 125mm, about the time code telescopic 350mm
UVC sensor: φ38 × 27mm, about the time code telescopic 350mm |
weight |
Body: about 350g (including battery),
UVA · UVC sensor: about 100g |
Power supply |
AA batteries × 6 or AC adapter (sold separately) |
accessories |
Manual, UVA sensor, UVC sensor |
Proofreading |
Yes |
Option |
AC adapter: VSM-932EK
K-type thermocouple sensor: LK model number of the product |
About SD card
It supports commercially available SD card (1 ~ 16GB), but the operation authentication for the SD card product of all manufacturers is not done. Because there may not be accustomed to the use by SD card, please note.
SD card is not included in the product. Please purchase separately.
SDXC type of memory card of the card and MMC Nadohoka can not be used.
SDXC, SDHC is a registered trademark of the SD Association.
