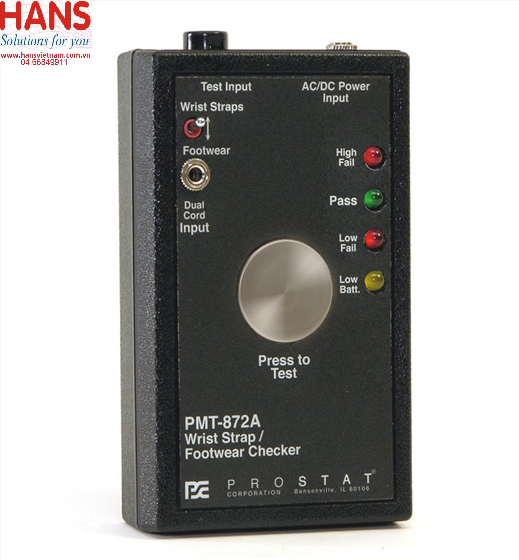

Thiết bị đo điện trở tĩnh điện Prostat PMT-872A

Thiết bị đo điện trở tĩnh điện Prostat PMT-872A

Model: PMT-872A

Hãng sản xuất: Prostat

Thông số kỹ thuật:

Test Voltage & Current: Nominal 9 volts and 0.006 µA to 1.0 mA
Power: One (1) standard 9-volt battery, PROCELL, Eveready #216 (NEDA 1604, JIS 006P, IEC 6F22); or, Optional AC/DC converter.
Factory Adjusted Measurement Ranges & Accuracy:
Wrist Straps: 8.0x105 Ohms to 1.0x107 Ohms < ±5% (Factory Default)
Footwear: 8.0x105 Ohms to 1.0x108 Ohms < ±5% (Factory Default)
Wrist Straps: 8.0x105 Ohms to 3.5x107 Ohms < ±5%
Footwear: 8.0x105 Ohms to 3.5x107 Ohms < ±5%
Toggle Range Selection: UP for Wrist Straps and DOWN for Footwear
Push Button: 27 mm Diameter, Metal spring loaded
Fall High: Red LED
Pass: Green LED with Audible Buzzer
Fall Low: Red LED
Battery Low: Yellow LED (At <8.2V Battery Voltage)
Audible Signal: Fast, Individual "Beeping" Sound with Green PASS LED on.
Operating Range: 5ºC to 49ºC (40ºF to 120ºF)
Storrage Temperature: -15ºC to 60ºC (5ºF to 140ºF)
Relative Humidity: 0% to 90%
Battery Life: 40 hours typical
Dimensions: 115 mm x 69 mm x 26 mm
Weight: 6 oz.
