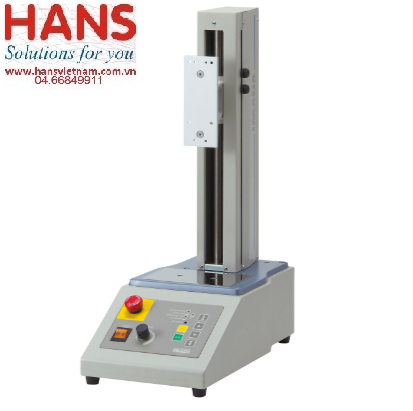

Thiết bị đo lực Imada MX-500N

Capacity

500N (50kgf)

1000N (100kgf)

5000N (500kgf)

Stroke when a force gauge is mounted(*1)

235mm

410mm

305mm

Test speed

10 to 300mm/min

8 to 240mm/min

10 to 300mm/min

Gauges that can be combined (*2)

Any force gauges except high capacity model force gauges

Mechanical / Digital Force gauges

Load cell can NOT be combined.

Function

Manual mode, Single mode, Continuous mode

Control

Emergency button, Operation control by load value(*3), Overload prevention(*3)(*4)

Safety devices

Stroke limit, emergency stop button

Power

AC100V to 240V, free input

Size

Please refer to dimensions.

Weight

Approx. 13kg

Approx. 24kg

Approx. 30kg

Option

Long stroke, Speed range change, Encoder

Accessory

Grip mounting adapter(GF-1)

Grip mounting adapter(GF-2)

Instruction manual, Power cable, Gauge mounting plate, Cover, Spare fuse, and Tools.
