Thiết bị đo lực kéo nén Ametek 338

Thiết bị đo lực kéo nén Ametek 338

Model: 338

Hãng sản xuất: Ametek

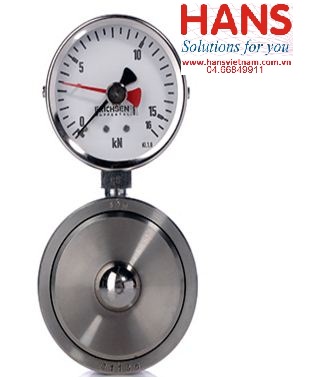

The robust construction of this hydraulic force gauge from Erichsen Wuppertal is suitable for rough operating conditions on machines and installations and is especially suited for large surfaces. It can be used for occasional spot checks as well as integrated in a permanent installation.
This Erichsen force gauge comes with an alignment ball for easy alignment of your load.
The standard instrument is fitted with a 63 mm diameter gauge with maximum reading pointer.
Erichsen Force Gauge Model 338 Key Features:
Compact design
Durable, robust construction
Ball feature for easy alignment of your load
Standard with a max. reading pointer
Load Range; 400N (90Lbs) to 63kN (14,000Lbs)
Accuracy: 1.6% of Full Scale
High pressure hose and capillary tube options
