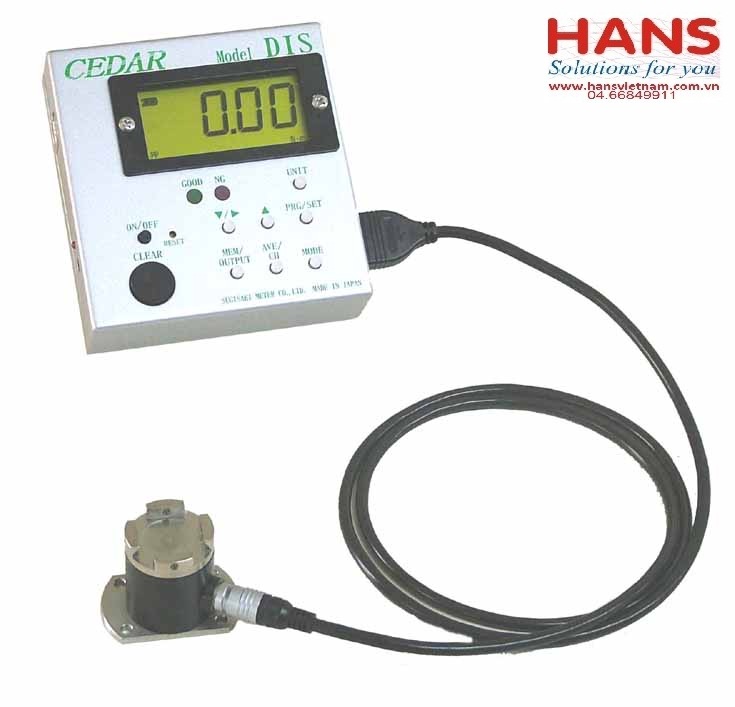

Thiết bị đo lực xoắn, momen xoắn Cedar DIS-IPS5C

DIS-IPS

Specification

DIS-IPS20C

DIS-IPS5C

Measuring range

0.20～20 N･m
　　2.0～200 kgf・cm　　
2.0～174 lbf・in

0.020～5 N･m
0.20～50 kgf・cm
0.20～45 lbf・in

Accuracy

±0.5%     (499 or less digit±3digit)

Display

The 4 figures digital display of LCD

The measurement direction

CW-CCW (right and left)

Measuring
mode

P-P  Peak

Peak load value hold.

T-R  Track

Indication of real time torque value.

P-D  Peakdown

Holding Load Value at the moment to change from upward to downword.

C Real-time output

Load torque value is outputted every about1/ 180 second .

Decision
function

Setting of torque value

A maximum and a minimum value are in a measuring range, and a setup is possible.
Can confirm the set value by the buzzer sound or LED.

Automatic Clearance

Automatically clear the displayed value after certain time (0.5 - 3.0 sec,selectable at each 0.5 sec). Setting 0.0 sec for manual Zero clearance

One-touch-Zero Clearance

Easy Zero-Adjustment with pressing CLEAR button

The Maximum, the minimum, and the average value

Displays, memory and output the data number, the maximum, the minimum, and the average value of the measured value to 30 data. It can save by a maximum of 10 channels.

Data spec.

Data transfer

ASCII format (Baud rate : 19200)

Data memory

800 data stored

Power supply

Ni-Cd chargeable battery 1.2V×5cells 　700mAh

Auto power save

10 minutes no use, automatically switch off.

Charging time

From empty - about 3hours

Continunous working time

12 hours

Attachment fit mouth

□20ｍm　

Meter outside type dimension

100（W）×105（D）×40（Ｈ）

Weight

Meter part    520g

Attachment

Fixed   Attachment　
□20㎜　M4/M5/M6/M8

cube 20*20*20
(M2.6/3/4/5/6)

OW joint　OW-20

OW joint　OW-10

Accessories
 (one piece each)

AC/DC adaptor (Please choose AC adaptor out of 120V, and 230V.)

An inspection report, a proofreading certificate, a traceability system figure
