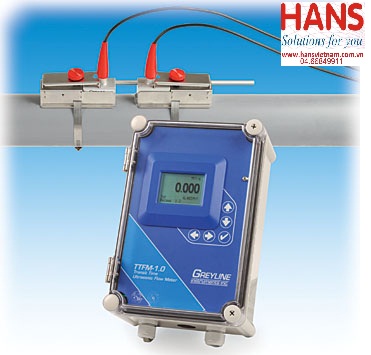

Thiết bị đo lưu lượng Greyline TTFM

Thiết bị đo lưu lượng Greyline TTFM

Model: TTFM

Hãng sản xuất: Greyline

Thông số kỹ thuật:

Pair SE16B ultrasonic transducers - clamp-on for 2” to 48” (50 mm to 1200 mm) pipes
and rated non-incendive for Class I, Division 2, Groups A, B, C & D locations
sensor cables - pair 25 ft / 7.6 m coaxial with BNC connectors
flow rate range: ± 0.07 to 39 ft/sec (± 0.02 to 12 m/sec)
installation - stainless steel transducer mounting brackets and clamps, alignment bar and silicone coupling compound kit
enclosure - watertight, NEMA4X (IP66) polyester and polycarbonate
display - white, backlit matrix
totalizer - 14 digits
calibration - built-in 5-key programmer
output - isolated 4-20mA (1000 ohm)
2 control relays - 5 amp, SPDT - programmable for flow proportional pulse output, and/or flow alarm
plug-and-play options including data logger and extra control relays
power input - 100-240VAC 50/60Hz, 4 Watts maximum
electrical surge protection and RFI filters - AC, sensor, 4-20mA
Contact Greyline Instruments for specific recommendations in your application
