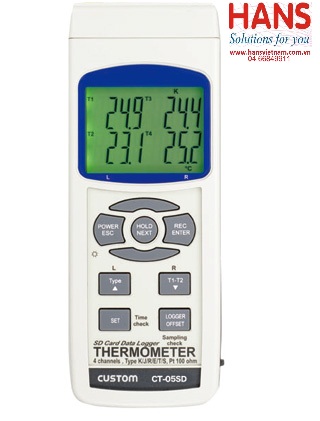

Thiết bị đo nhiệt độ Custom CT-05SD

0₫

Nhà Sản Xuất Custom
Mã Sản Phẩm CT-05SD

Thiết bị đo nhiệt độ Custom CT-05SD

Model: CT-05SD

Hãng sản xuất: Custom

Thông số kỹ thuật:

Use temperature and humidity	0 ~ + 50 ℃, 85% RH or less (without condensation)
Storage temperature and humidity	-20 ~ + 60 ℃, 85% RH or less (without condensation)
Dimensions and weight	W68 × H177 × D45mm, about 380g (including the battery)
Power supply	AA batteries × 6 or AC adapter (sold separately)
accessories	instruction manual
Proofreading	Yes
option	AC adapter: VSM-932EK K-type thermocouple sensor: LK model number of the product Platinum resistance temperature detector Pt100Ω sensors: TP-101

Electric performance

The maximum number of simultaneous measurement channel	type	Measurement range	resolution	Measurement accuracy
Four	K type	-100.0 ~ -50.1 ℃	0.1 ℃	± (0.4% + 1 ℃)
		-50.0 ~ + 999.9 ℃	0.1 ℃	± (0.4% + 0.5 ℃)
		+ 1000 ~ + 1300 ℃	1 ℃	± (0.4% + 1 ℃)
	J type	-100.0 ~ -50.1 ℃	0.1 ℃	± (0.4% + 1 ℃)
		-50.0 ~ + 999.9 ℃	0.1 ℃	± (0.4% + 0.5 ℃)
		+ 1000 ~ + 1150 ℃	1 ℃	± (0.4% + 1 ℃)
	T type	-100.0 ~ -50.1 ℃	0.1 ℃	± (0.4% + 1 ℃)
	T type	-50.0 ~ + 400 ℃	0.1 ℃	± (0.4% + 0.5 ℃)
	E type	-100.0 ~ -50.1 ℃	0.1 ℃	± (0.4% + 1 ℃)
	E type	-50.0 ~ + 900 ℃	0.1 ℃	± (0.4% + 0.5 ℃)
	R type	0 ~ + 1700 ℃	1 ℃	± (0.5% + 1 ℃)
	S type	0 ~ + 1500 ℃	1 ℃	± (0.5% + 1 ℃)
Two	PT100Ω	-199.9 ~ + 850.0 ℃	0.1 ℃	± (0.4% + 1 ℃)

Thiết bị đo nhiệt độ Custom CT-05SD

Model: CT-05SD

Hãng sản xuất: Custom

Thông số kỹ thuật:

Use temperature and humidity	0 ~ + 50 ℃, 85% RH or less (without condensation)
Storage temperature and humidity	-20 ~ + 60 ℃, 85% RH or less (without condensation)
Dimensions and weight	W68 × H177 × D45mm, about 380g (including the battery)
Power supply	AA batteries × 6 or AC adapter (sold separately)
accessories	instruction manual
Proofreading	Yes
option	AC adapter: VSM-932EK K-type thermocouple sensor: LK model number of the product Platinum resistance temperature detector Pt100Ω sensors: TP-101

Electric performance

The maximum number of simultaneous measurement channel	type	Measurement range	resolution	Measurement accuracy
Four	K type	-100.0 ~ -50.1 ℃	0.1 ℃	± (0.4% + 1 ℃)
		-50.0 ~ + 999.9 ℃	0.1 ℃	± (0.4% + 0.5 ℃)
		+ 1000 ~ + 1300 ℃	1 ℃	± (0.4% + 1 ℃)
	J type	-100.0 ~ -50.1 ℃	0.1 ℃	± (0.4% + 1 ℃)
		-50.0 ~ + 999.9 ℃	0.1 ℃	± (0.4% + 0.5 ℃)
		+ 1000 ~ + 1150 ℃	1 ℃	± (0.4% + 1 ℃)
	T type	-100.0 ~ -50.1 ℃	0.1 ℃	± (0.4% + 1 ℃)
	T type	-50.0 ~ + 400 ℃	0.1 ℃	± (0.4% + 0.5 ℃)
	E type	-100.0 ~ -50.1 ℃	0.1 ℃	± (0.4% + 1 ℃)
	E type	-50.0 ~ + 900 ℃	0.1 ℃	± (0.4% + 0.5 ℃)
	R type	0 ~ + 1700 ℃	1 ℃	± (0.5% + 1 ℃)
	S type	0 ~ + 1500 ℃	1 ℃	± (0.5% + 1 ℃)
Two	PT100Ω	-199.9 ~ + 850.0 ℃	0.1 ℃	± (0.4% + 1 ℃)
