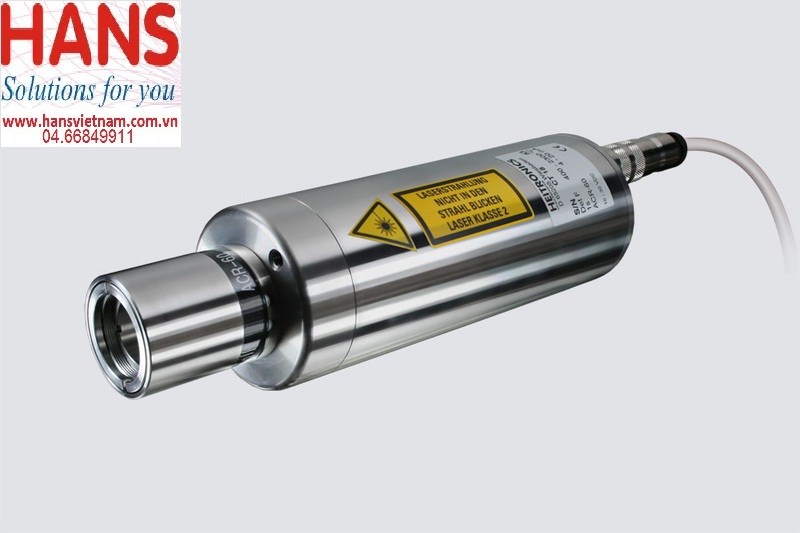

Thiết bị đo nhiệt độ Heitronics CT18

Thiết bị đo nhiệt độ Heitronics CT18

Model: CT18

Hãng sản xuất: Heitronics

Thông số kỹ thuật:

CT18 is a digital, compact, programmable and universally applicable radiation pyrometer series with comprehensive and flexible functions for industrial temperature monitoring and control.

Short wavelength Infrared Radiation Pyrometer responses at 1 µm and 1.6 µm

Extreme high stability

Very high resolution 0.01 °C

Fast response times as fast as 1 ms on low temperatures

Wide temperature ranges 200 °C to 3000 °C (> Downloads)

Features

Focus on application

Up to 175 °C ambient temperature by using water cooling

Fast target measurement

Pilot laser marks the center of the field-of-view

Very high accuracy as 0.25 % (min. 2 °C)

User interface software for complete programming and measurement

Fields-of-view up to 100:1 at low temperatures (> 200 °C) allow high optical resolutions
