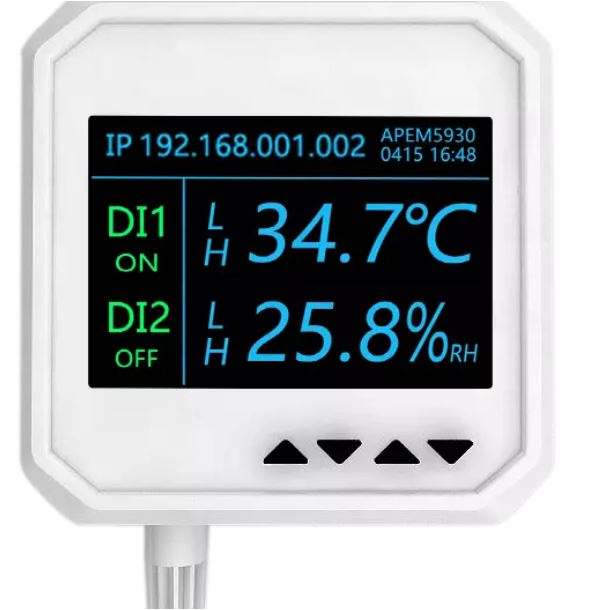

Thiết bị đo nhiệt độ và độ ẩm APEM-5930

Temperature

Measurement accuracy:

Measuring range:

Calibration:

±0.2C

-40-125C

Key or Webserver

Humidity

measurement accuracy:

Measuring range:

calibration:

±2% RH (Typical value, can be customized 1.5%±1.5%RH)

0%~100% RH (typical)

Key / Webserver

Alarm

Alarm method:

Alarm setting upper and lower limits:

Sound and light alarm

Key / Webserver

Communication parameter

Network Interface:

Device MAC address:

Transmission distance:

Serial port /switching value/ relay Interface:

Parameter configuration Set mode:

Protocol:

RJ45, 10M/100M adaptive

Factory default (unique address is not adjustable)

Unlimited

RJ45

Webserver / Key

TCP, UDP, SNMP, ARP, DHCP and other network protocols

Power supply

Power supply:

Dual power supply:

operating hours:

Working current:

POE / Dc12v 300ma

Support

7*24*365 hours

300mA

Sensor probe

Types of:

Built in / external:

Temperature and humidity

External

Environment

Working environment:

Storage environment:

Temperature -20~+70°C, humidity 0~99%RH, non-condensing

Temperature -20~+70°C, humidity 0~99%RH, non-condensing

Protection level

Enclosure rating:

Fire-proof level:

Anti-electromagnetic interference:

IP55

V-0

Optical isolation

Material

Shell:

panel:

Screen display:

weight:

Installation Method:

ABS (white)

PCB single side

Color screen

About 300 grams

Wall surface: screw fixed metal surface: magnet adsorption

Size

Shell size:

LCD size:

100*92*30mm

73.44*48.96mm
