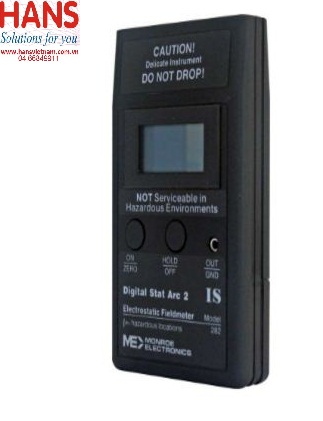

Thiết bị đo tĩnh điện Monroe Electronics 282IS

282IS Industrial Approval and certification:

CE mark approved

UL Certification Class I Groups A, B, C, D, and Class II Groups E, F, G,

when powered by 9­volt carbon zinc

or zinc chloride battery NEDA 1604

or NEDA 1604D.

UL Certification for Class I, Division 1,

Groups C and D only when powered

by 9­volt alkaline NEDA 1604A.

Accuracy:

~5% of reading, + zero offset, ~2 Isd

Analog output Amplitude:

1 V signal denotes 10kV reading at 1 inch for high impedance loads

Jack Type:

Accepts standard 3/32 inch; (2.5mm) monaural phone plug

Batteries:

9V NEDA #1604 or equivalent,

Life: 40 hours of normal use, with alkaline battery

Response Time:

Typ. 80 ­ 100 msec 10 ­ 90%

Operating environment:

0­50°C, 0­85% RH (non­condensing),

unaffected by ionized equipment

Physical:

(L x W x H): 2.4 x 4.2 x 0.9 inches; (6.1 x 10.7 x 2.3 cm) Weight: 5 oz; (0.14kg) with battery
