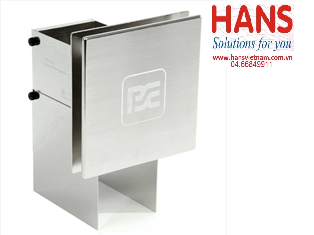

Thiết bị đo tĩnh điện Prostat CPM-760A

0₫

Nhà Sản Xuất Prostat
Mã Sản Phẩm CPM-760A

Thiết bị đo tĩnh điện Prostat CPM-760A

Model: CPM-760A

Hãng sản xuất: Prostat

Thông số kỹ thuật:

Range: 0 to ± >5 kV at a plate separation of 0.63 inch.

Accuracy: ± 2% 0 to 1,000 volts.

5 Minute Decay @ 50% RH

When charged to 1kV, floating plate voltage decays less than 5% (<50 volts) over a 5 minute period.

Calibration: Accomplished via adjustable instrument saddle and grounding device.

Grounding: Via snap fastener of Model PFM-711A and meter saddle assembly.

Assemmly: 6.0” High in Vertical Test Configuration

Height: 9.0” High in Horizontal Test Configuration; Center of Plate 6.0” from Worksurface

Weight: 2.5 pounds
