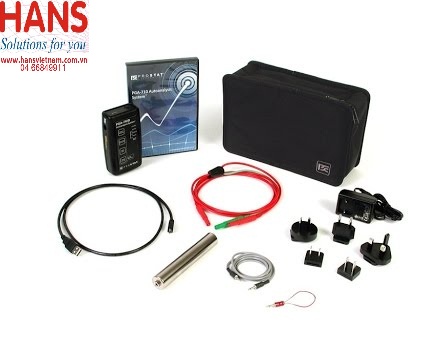

Thiết bị đo tĩnh điện Prostat PGA-710B

Thiết bị đo tĩnh điện Prostat PGA-710B

Model: PGA-710B

Hãng sản xuất: Prostat

Thông số kỹ thuật:

Size: 5.0 in (12.7 cm) L x 2.8 in (7.1 cm) W x 1.35 in (3.4 cm) H

Weight: 6.5 ounces (185 grams)

Input: <±2 Volts

Output: USB

Sampling Rate: 50, 100 and 200 Samples per second

File Limit: 17 to 20 minutes per file, continuous recording

PGA-710B current flow with Main Power Switch ON:

During Sleep Mode (Main Power Battery Switch ON, unit OFF): 8 – 10ma
Panel key pad is energized and unit is in standby mode.

During Normal Operations: 108ma
Unit is operating in remote or computer mode

Computer USB Battery Charge: 100ma
Operating in computer mode and receiving 100ma current from USB port reduces battery drain rate to 8ma.

Battery Charge from AC/DC Charger: 280ma
Charge battery with Main ON, OFF, or during operations

Temperature:

Range: -30 to + 85°oC (-22°F to 185°F)
Accuracy: ± 0.40 °C (»1 °F)
Response Time: 50 seconds in slow moving air

Humidity:

Operating Range: 0 – 100 percent (%)
Accuracy: ±2.0% Rh, 0-100% non-condensing
Linearity: ±0.5% Rh
Response Time: 25 sec-slow moving air 25°C (77 °F)
Recovery Time (from Condensation): 10 seconds
Stability: ±0.5% Rh/year

Tags: Máy đo tĩnh điện
