Thiết bị đo tốc độ gió Custom WS-03SD

0₫

Nhà Sản Xuất Custom
Mã Sản Phẩm WS-03SD

Mô tả
Bình luận

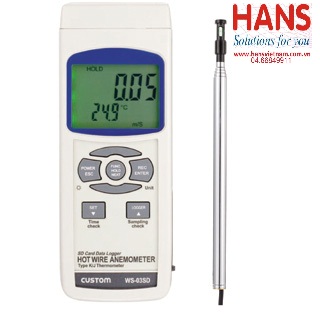

Thiết bị đo tốc độ gió Custom WS-03SD

Model: WS-03SD

Hãng sản xuất: Custom

Thông số kỹ thuật:

Wind speed

unit	range	resolution	Measurement accuracy
m / s	0.20 ~ 5.00 m / s	0.01m / s	± (5% rdg + a) or ± (1% fs + a) , whichever is greater *
m / s	5.1 ~ 25.0 m / s	0.1m / s
km / h	0.70 ~ 18.00km / h	0.01km / h
km / h	18.0 ~ 72.0km / h	0.1km / h

A = 0.1M * / S, 0.3Km / H
Temperature

Type	Measurement range	resolution	Measurement accuracy
Wind speed sensor	0 ~ + 50 ℃	0.1 ℃	± 0.8 ℃
K type	-50.0 ~ + 1300.0 ℃	0.1 ℃	± (0.4% rdg + 0.5 ℃)
K type	-100.0 ~ -50.1 ℃	0.1 ℃	± (0.4% rdg + 1 ℃)
J type	-50.0 ~ + 1100.0 ℃	0.1 ℃	± (0.4% rdg + 0.5 ℃)
J type	-100.0 ~ -50.1 ℃	0.1 ℃	± (0.4% rdg + 1 ℃)

It does not include the option of sensor accuracy in the measurement accuracy.

There is no handling of the J-type thermocouple sensor at our company.

General specification

Sensor	Wind speed sensor: hot wire Temperature Sensor: glass bead type thermistor
Use temperature and humidity	0 ~ + 50 ℃, 85% RH or less (without condensation)
Storage temperature and humidity	-20 ~ + 60 ℃, 85% RH or less (without condensation)
weight	Body: about 360g (including battery)
Power supply	AA batteries × 6 or AC adapter (sold separately)
Size	Body: W68 x H180 x D45mm, Telescopic type wind speed sensor: φ12 × 250 ~ 950mm, cable length about 1.2 ~ 1.9m
accessories	Instruction manual, the sensor probe
Proofreading	Improper
Option	AC adapter: VSM-932EK K-type thermocouple sensor: LK model number of the product

About SD card

It supports commercially available SD card (1 ~ 16GB), but the operation authentication for the SD card product of all manufacturers is not done. Because there may not be accustomed to the use by SD card, please note.

SD card is not included in the product. Please purchase separately.

SDXC type of memory card of the card and MMC Nadohoka can not be used.

SDXC, SDHC is a registered trademark of the SD Association.

Tags: Máy đo gió

Mô tả

Thiết bị đo tốc độ gió Custom WS-03SD

Model: WS-03SD

Hãng sản xuất: Custom

Thông số kỹ thuật:

Wind speed

unit	range	resolution	Measurement accuracy
m / s	0.20 ~ 5.00 m / s	0.01m / s	± (5% rdg + a) or ± (1% fs + a) , whichever is greater *
m / s	5.1 ~ 25.0 m / s	0.1m / s
km / h	0.70 ~ 18.00km / h	0.01km / h
km / h	18.0 ~ 72.0km / h	0.1km / h

A = 0.1M * / S, 0.3Km / H
Temperature

Type	Measurement range	resolution	Measurement accuracy
Wind speed sensor	0 ~ + 50 ℃	0.1 ℃	± 0.8 ℃
K type	-50.0 ~ + 1300.0 ℃	0.1 ℃	± (0.4% rdg + 0.5 ℃)
K type	-100.0 ~ -50.1 ℃	0.1 ℃	± (0.4% rdg + 1 ℃)
J type	-50.0 ~ + 1100.0 ℃	0.1 ℃	± (0.4% rdg + 0.5 ℃)
J type	-100.0 ~ -50.1 ℃	0.1 ℃	± (0.4% rdg + 1 ℃)

It does not include the option of sensor accuracy in the measurement accuracy.

There is no handling of the J-type thermocouple sensor at our company.

General specification

Sensor	Wind speed sensor: hot wire Temperature Sensor: glass bead type thermistor
Use temperature and humidity	0 ~ + 50 ℃, 85% RH or less (without condensation)
Storage temperature and humidity	-20 ~ + 60 ℃, 85% RH or less (without condensation)
weight	Body: about 360g (including battery)
Power supply	AA batteries × 6 or AC adapter (sold separately)
Size	Body: W68 x H180 x D45mm, Telescopic type wind speed sensor: φ12 × 250 ~ 950mm, cable length about 1.2 ~ 1.9m
accessories	Instruction manual, the sensor probe
Proofreading	Improper
Option	AC adapter: VSM-932EK K-type thermocouple sensor: LK model number of the product

About SD card

SD card is not included in the product. Please purchase separately.

SDXC type of memory card of the card and MMC Nadohoka can not be used.

SDXC, SDHC is a registered trademark of the SD Association.

Tags: Máy đo gió
