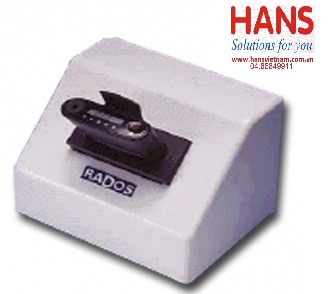

Thiết bị đọc dữ liệu liều kế RPD ADR-1

Thiết bị đọc dữ liệu liều kế RPD ADR-1

Model: ADR-1

Hãng sản xuất: RPD

Thông số kỹ thuật:

ADR-1 Reader for RAD-60 Dosimeters.
Connects to any PC with a serial port using Windows 95™ or greater.
With the ADR-1 Reader for RAD-60 Dosimeters the user can:

Change Dosimeter Settings.

Perform Calibration.

Assign Dosimeters.

Assign a User ID and Name.
Features:
The ADR-1 dosimeter reader head is a robust, yet compact, noncontact dosimeter reader for the RAD-60 dosimeters.

Compatible with RAD-60 series electronic dosimeters

Indicator LED for dosimeter communication

Desktop and wall mounting as standard

Delivered with Rs-232 cable and universal input

Voltage DC power supply

Networkable

Badge reader, security gate interface

Stand alone emergency mode with data memory

The Reader connects to any PC via 9 Pin Serial port.
ADR-1 Reader for RAD-60 Dosimeters Includes:

ADR-1 Reader

Configuration Software

Manual
Specifications:
Dimensions: 5.9” W x 4.5” H x 4.5" D (15 x 11.5 x11.5 cm)
Weight: 4.2 lb (1.9 kg)
Power Supply: +12 VDC, max. 200mA
Operating Temperature: 32°F to 104°F (0°C to 40°C)
Storage Temperature: 14°F to 140°F (-10°C to 60°C)
Operating Humidity: 90% RH (non-condensing)
