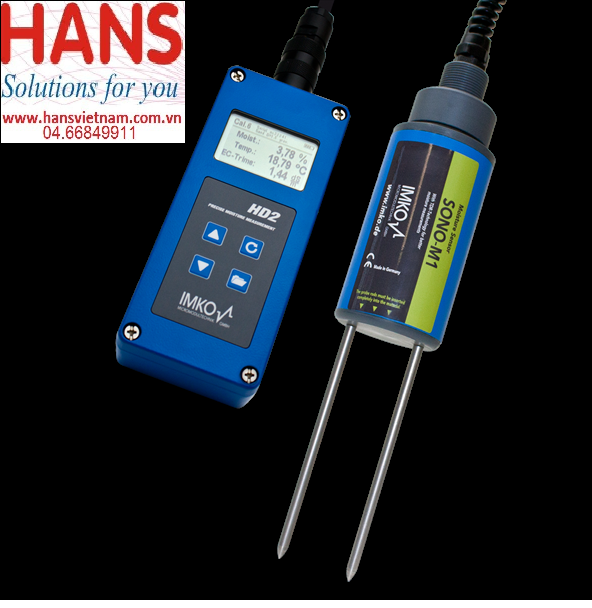

Thiết bị ghi độ ẩm đất IMKO HD2 the mobile

Technical data HD2

Convenient one-hand operation. The multi-line LCD display shows all information at a glance.

Power supply:

4,8V-DC, 2000mAh battery capacity. Full battery for up to 5,000 measuring cycles sufficient.

Resolution:

0,01%

Calibration:

(on sensor)

Case:

Weatherproof, robust aluminium diecast (IP67)

Dimensions:

150 x 64 x 36mm (Length x width x height), Weight: 437g

Technical data trime©-sono-m1

Moisture sensor with a large measurement volume. Ideally suited for sand, gravel, lime and other aggregates.

Power supply:

7V..24V-DC (100mA @ 12V/DC during 2..3sec. measuring time)

Repeating accuracy:

±0,1%

Interfaces:

Analogue output 0..1V, RS485, IMP232 MICRONET

Calibration:

Calibration for sand and gravel preinstalled, customizeable material specific calibration is possible, storage up to 15 user defined calibration curves.

Case:

Weatherproof sealed PVC (IP68)

Size:

155 x Ø63mm

Rod length:

standard: 130mm

Rod diameter:

6mm
