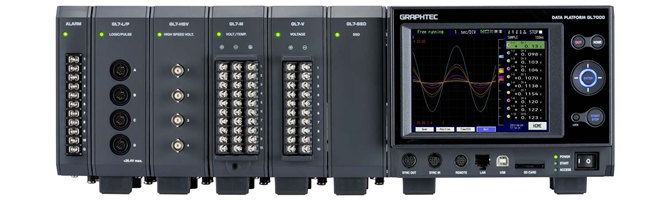

Thiết bị ghi nhận dữ liệu đa chức năng GRAPHTEC GL7000

Item

Description

Number of module

Attached to up to 10 modules *1

Number of input channels

Max. 112 channels in one GL7000

External Input/Output signals *2

Input

Start/Stop, Trigger, External sampling, Auto balance
Signal type: Contact (relay), Open collector, Voltage

Output

Trigger, Busy, Alarm (10 channels) *3
Signal type: Open collector (pulled-up by resistor 10 k ohms)

Trigger, Alarm function

Trigger repeat

Enabled (ON): Automatically rearm for the next data capture
Disabled (OFF): Data capture is completed in a single trigger

Trigger action

Start or stop capturing data by the trigger

Trigger condition

Start: Off, Measured signal, Alarm, External, Clock, Week or Time
Stop: Off, Measured signal, Alarm, External, Clock, Week or Time

Trigger determination conditions for measured signal

Combination: OR or AND condition at the level of signal or edge of signal
Analog: Higher/Rising, Lower/Falling, Window-in, Window-out
Logic *4: Higher/Rising, Lower/Falling
Pulse *4: Higher/Rising, Lower/Falling, Window-in, Window-out

Alarm determination condition *5

Combination: OR or AND condition at the level of signal or edge of signal
Analog: Higher/Rising, Lower/Falling, Window-in, Window-out
Logic *4: Higher, Lower, Rising, Falling
Pulse *4: Higher/Rising, Lower/Falling, Window-in, Window-out

Alarm output

10 channels

Pre-trigger *6

Number of data before trigger: Up to specified number of captured data

Calculation function

Between channels

Addition, Subtraction, Multiplication and Division for two analog inputs (Sampling speed is limited up to 10 Samples/s (100ms interval). Available arithmetic element and the output destination is the analog input channel 1 to 100.)

Statistical

Select two calculations from Average, Peak, Max., Min. in real time and replay *7

Move function of the display range

Beginning, center or end of the data, Trigger point, Specific time (absolute, relative), Call cursor

Search function

Search for analog signal levels, logic signal pattern, pulse signal levels or alarm point in captured data

Annotation function

Comment can be set in each channel (up to 31 alphanumeric characters)

Message, Marker function

Message: Record up to 8 messages in any timing (Any message can be set before data capture is started or during data capture.)Marker: Recorded when the trigger, alarm or power failure occur

Resume

Resume automatically in the same condition after power is recovered when the power failure occurred duaring data capture *8

Interface to PC

Ethernet (10 BASE-T/100 BASE-TX), USB 2.0 (High speed)

Network function

WEB server, FTP server, FTP client, NTP client, DHCP client

USB drive mode

Emulate the USB memory device *9

Storage device

Built-in

RAM (2 million samples, built-in Signal conditioning module), Flash memory (2 gigabytes, built-in the main module)

External *10

SD card (Support SDHC, up to 32 GB) slot, SSD (Approx. 64 GB)The file for capturing data is limited up to 2 GB.

Data saving function

Captured data *10

Built-in RAM, Built-in Flash, SD memory card, SSD (Data is saved directly to it.)

Data in built-in RAM

Specified number of data up 2 million samples increment of 1

Auto save *10

Available for the built-in RAM
Enabled (ON): Data in the RAM is saved automatically to the built-in Flash, SD memory card, SSD
Disabled (OFF): Data in the RAM is not maintained after power is turned off

Ring capturing mode *10 *11

Saves most recent data
Number of capturing data: 1000 to 2000000 points, Destination of data: Built-in RAM, Built-in Flash, SD memory card, SSD

During capturing data

Displaying information in two windows, Hot-swapping the SD memory card, Saving data in between cursors.

Backup *10

Backup interval: Off, 1, 2, 6, 12, 24 hrs.
Data destination: SD memory card, SSD, FTP server

Engineering Scale function

Measured value can be converted to the engineering unit
Analog voltage: Converts by four reference points (gain, offset)
Temperature: Converts by two reference points (offset)
Pulse count: Converts by two reference points (gain)

Synchronization between units

Start and Trigger *12

Accuracy of clock (at 23 degree Celsius)

+/- 0.002 % (Monthly deviation approx. 50 sec.)

Operating environment

0 to 45 ºC, 5 to 85 % RH (non condensed)

Power source

100 to 240 V AC, 50/60 Hz

Power consumption

Approx. 85 VA

Standard accessories

Quick guide, CD-ROM, AC power cable

External dimensions (W x D x H)

Main module: Approx. 193 x 141 x 160 mm (Excluding projectin), Alarm output terminal: Approx. 30 x 136 x 145 mm (Excluding projection)

Weight

Main module: Approx. 2 kg, Alarm output terminal: Approx. 350 g

Model name

GL-Connection

Supported OS

Windows 7 (32/64-bits, Except Starter edition), Vista (32/64-bits), XP *13

Functions

Control GL7000, Real-time data capture, Replay data, Data format conversion

Controlled units

Up to 10 units (Max. 1120 channels)

GL7000 Settings control

Input settings, Memory settings, Trigger and Alarm settings, Other settings

Captured data *14

Built-in RAM (Binary format), Built-in Flash memory (Binary, CSV format), SD memory card (Binary, CSV format), SSD (Binary, CSV format)
The sampling is limited by the number of channels used. (1 ms per channel. When 10 channels are set, sampling is limited to 10 ms.)

Displayed information

Analog waveforms, Logic waveforms, Pulse waveforms, Digital values

Display mode

Y-T waveform with digital values, X-Y graph in real time, Cursor information, Capture condition, Alarm information

File operation

Converts binary data to the CSV data (specific period, all data in one file, multiple files), Creates a new file with compression or by consolidating multiple file.

Warning Function

Send e-mail to the specified address when the alarms occur

Statistical calculation

Capturing data: Maximum, Minimum, Peak or Average
Replaying data: Maximum, Minimum, Peak, Average or RMS in between cursors

Search function

Level

Specific level in any channel

Alarm

Occurred alarm in any channel

Time

Beginning, center, end of the data, Trigger point, Specific time (absolute, relative), Specific number

Operation lock

Operation screen can be locked (It is unlocked with the password.)

Model name

GL7-DISP

Display device

5.7-inch TFT color LCD monitor (VGA: 640 x 480 dots)

Operation section

Touch panel and Cursor keys *15

Touch panel

Capacitive type touch panel, Operated by finger or the proprietary pen

Displayed language

English, French, German, Chinese, Korean, Japanese

Screen saver

Turns off backlight by 10, 30 sec., 1, 2, 5, 10, 30, 60 min.

Displayed information

Waveform in Y-T with digital values, Waveform only, Digital value, Waveform in X-Y

Connection cable

LAN cable (CAT5 class, Straight connection, Up to 10m) *16

Standard accessories

Bracket for slanted mount, Connection cable (40cm), Ground cable, Screws

External dimensions (W x D x H)

Approx. 187 x 35 x 199 mm (Excluding projection)

Weight

Approx. 530 g

Model name

GL7-SSD

Memory device

Solid state disk (SSD), Form factor: 2.5-inch HDD

Capacity

Approx. 64 GB (The file size of the captured data is limited up to 2 GB.)

Sampling speed *17

Attached 1 or 2 modules

Max. 1 M Samples/s

Attached 1 or 2 modules

Max. 500 k Samples/s

Attached 5 to 10 modules

Max. 200 k Samples/s

External dimensions (W x D x H)

Approx. 49 x 136 x 160 mm (Excluding projection)

Weight

Approx. 770 g

Model number

GL7-M

Number of input channels

10 channels

Input method

All channels isolated balanced input, Scans channels for sampling, Screw terminal (M3 screw)

Sampling speed

100 Samples/s at 1-10ch to 1 Sample/h (10 ms with 1-10ch to 1 hr. interval)

Measurement range

Voltage

20, 50, 100, 200, 500 mV, 1, 2, 5, 10, 20, 50 V, and 1-5 V/F.S.

Temperature

Thermocouple: K, J, E, T, R, S, B, N, and W (WRe5-26),
RTD: Pt100, JPt100 (JIS), Pt1000 (IEC751)

Humidity *1

0 to 100 % (using scaling function in 5V range, humidity sensor B-530)

Measurement accuracy*2

Voltage

± 0.1 % of F.S.

Temperature

Thermocouple

Measurement range

Measurement accuracy

R/S

0 °C ≤ TS ≤ 100 °C

± 5.2 °C

100 °C < TS ≤ 300 °C

± 3.0 °C

R: 300 °C < TS ≤ 1600 °C

± (0.05 % of reading + 2.0 °C)

S: 300 °C < TS ≤ 1760 °C

± (0.05 % of reading + 2.0 °C)

B

400 °C ≤ TS ≤ 600 °C

± 3.5 °C

600 °C < TS ≤ 1820 °C

± (0.05 % of reading + 2.0 °C)

K

-200 °C ≤ TS ≤ -100 °C

± (0.05 % of reading + 2.0 °C)

-100 °C < TS ≤ 1370 °C

± (0.05 % of reading + 1.0 °C)

E

-200 °C ≤ TS ≤ -100 °C

± (0.05 % of reading + 2.0 °C)

-100 °C < TS ≤ 800 °C

± (0.05 % of reading + 1.0 °C)

T

-200 °C ≤ TS ≤ -100 °C

± (0.1 % of reading + 1.5 °C)

-100 °C < TS ≤ 400 °C

± (0.1 % of reading + 0.5 °C)

J

-200 °C ≤ TS ≤ -100 °C

± 2.7 °C

-100 °C < TS ≤ 100 °C

± 1.7 °C

100 °C < TS ≤ 1100 °C

± (0.05 % of reading + 1.0 °C)

N

0 °C ≤ TS ≤ 1300 °C

± (0.1 % of reading + 1.0 °C)

W

0 °C ≤ TS ≤ 2000 °C

± (0.1 % of reading + 1.5 °C)

Reference Junction Compensation (R.J.C.) accuracy: ± 0.5 °C *3

RTD

Measurement range

Driving current

Accuracy

Pt100

-200 °C to 850 °C (FS = 1050 °C)

1 mA

± 1.0 °C

JPt100

-200 °C to 500 °C (FS = 700 °C)

1 mA

± 0.8 °C

Pt1000

-200 °C to 500 °C (FS = 700 °C)

0.2 mA

± 0.8 °C

R.J. Compensation

Selecting of the internal or external

A/D Converter

Sigma-Delta type, 16 bits (effective resolution: 1/40000 of measuring full range)

Stability with temperature

Gain

0.01 % of F.S./°C

Zero *4

0.02 % of F.S./°C

Input impedance

1 MΩ ± 5 %

Maximum input voltage

Between (+) / (-) terminal

60 V p-p

Between channels

60 V p-p

Between channel / GND

60 V p-p

Maximum voltage

Between channels

350 V p-p (1 minute)

Between channel / GND

350 V p-p (1 minute)

Isolation

Between input / GND

Min. 50 MΩ (at 500 V DC)

Common-mode rejection ratio

Min. 90 dB (50/60 Hz, Signal source impedance: Max. 300 Ω)

Filter

Off, 2, 5, 10, 20, 40 (Moving average in selected number. When the sample is longer than 5 seconds, the data sampled in the sub-sample (5 seconds) will be used for creating the average value. )

5V output

Driving the humidity sensor B-530, 1 channel

External dimensions (W×D×H)

49 x 136 x 160 mm (Excluding projection)

Weight

Approx. 770 g

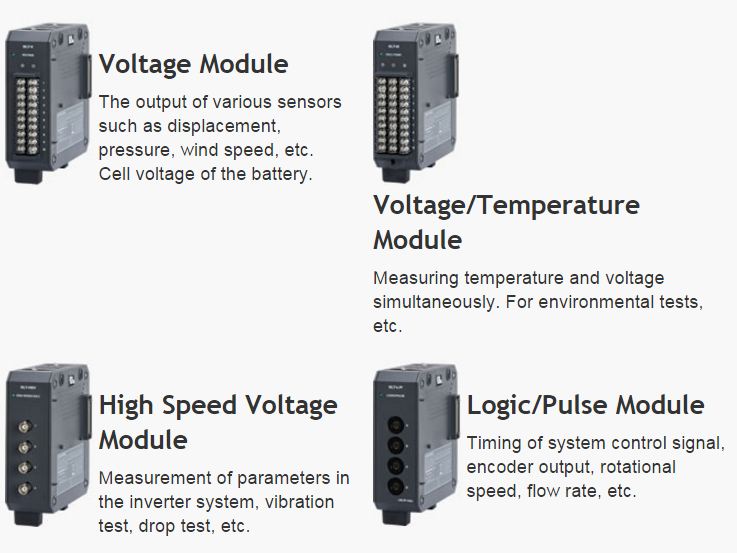

Voltage module specifications

Voltage

High Speed Voltage

Model number

GL7-V

GL7-HSV

Number of input channels

10 channels

4 channels

Input method

All channels isolated unbalanced input, Simultaneous sampling, Screw terminal

All channels isolated unbalanced input, Simultaneous sampling, BNC connector

Sampling speed (interval)

1 k Samples/s to 1 Sample/h (1ms to 1h)

1 M Samples/s to 1 Sample/h (1μs to 1h)

Measurement range

100, 200, 500 mV,1, 2, 5, 10, 20, 50, 100 V, and 1-5 V/F.S.

Measurement accuracy*5

± 0.25 % of F.S.

A/D Converter

Successive Approximation type, 16 bits (effective resolution: 1/40000 of measuring full range)

Stability with temperature

Gain

0.01 % of F.S./°C

Zero

0.02 % of F.S./°C

Input impedance

1 MΩ ± 5 %

Maximum input voltage

Between (+) / (-) terminal

100mV to 1V range: 60 V p-p, 2V to 100V range: 100 V p-p

Between channels

60 V p-p

Between channel / GND

60 V p-p

Maximum voltage

Between channels

1000 V p-p (1 minute)

Between channel / GND

1000 V p-p (1 minute)

Isolation

Between input / GND

Min. 50 MΩ (at 500 V DC)

Common-mode rejection ratio

Min. 90 dB (50/60 Hz, Signal source impedance: Max. 300 Ω)

Frequency response

DC to 1 k Hz (at +1/-3 dB)

DC to 2 k Hz (at +1/-3 dB)

Filter (Low pass)

Off, Line(1.5Hz), 5, 50, 500 Hz (-3dB, 6dB/oct)

Off, Line(1.5Hz), 5, 50, 500, 5k, 50k Hz (at -3dB, 6dB/oct)

External dimensions (W×D×H)

49 x 136 x 160 mm (Excluding projection)

Weight

Approx. 840 g

Approx. 740 g

Model number

GL7-L/P

Number of input channels

16 channels

Input method

All channels common ground, simultaneous sampling, Circular connector (4ch/connector)

Sampling speed

Logic mode

Up to 1 M Samples/s (1μs interval)

Pulse mode

Up to 10 k Samples/s (100μs interval)

Measurement mode

Selecting of the Logic input mode or Pulse input mode *6

Mode

Pulse

Rotation count (RPM), Accumulating count, Instant count

Rotation count (RPM)

Function

Counting the number of pulses per sampling interval and then it is converted to RPM

Range

50, 500, 5000, 50 k, 500 k, 5 M, 50 M, 500 M rpm/F.S.

Accumulating count

Function

Accumulating the number of pulses from the start of measurement

Range

50, 500, 5 k, 50 k, 500 k, 5 M, 50 M, 500 M counts/F.S.

Instant count

Function

Counting the number of pulses per sampling interval (count is reset at each sampling)

Range

50, 500, 5 k, 50 k, 500 k, 5 M, 50 M, 500 M counts/F.S.

Max. input frequency

1 M Hz

Max. number of count

15 M counts (24 bits counter is used)

Input signal

Voltage range

0 to +24 V (common ground)

Signal type

Contact (Relay), Open collector, Voltage

Threshold

Approx. 2.5 V

Hysteresis

Approx. 0.5 V (2.5 V to 3 V)

Filter

Off or On (-3 dB at 50 Hz)

External dimensions (W×D×H)

49 x 136 x 160 mm (Excluding projection)

Weight

Approx. 700 g
