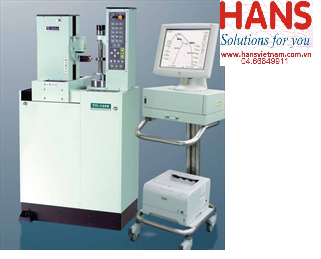

Thiết bị kiểm tra bánh răng Tokyo Technical TTi-150H

0₫

Nhà Sản Xuất Tokyo Technical
Mã Sản Phẩm TTi-150H

Thiết bị kiểm tra bánh răng Tokyo Technical TTi-150H

Model: TTi-150H

Hãng sản xuất: Tokyo Technical

Thông số kỹ thuật:

Test item	Spur/ Helical gear, Internal gear: Profile, Lead, Pitch Electronic generating DDC loop system
Measuring system	Electronic generating DDC loop system /NDG Measuring System
Measuring module	m0.2〜4.0
Base circle dia.	TTi-120E / Φ120mm （outer diameter Φ130mm） TTi-150E / Φ150mm （outer diameter Φ160mm）
Helix angle	±65°（90°）
Gear width	200mm Max
Shaft length	10〜260mm
Max gear weight	20kg Max
Drive system	onstant-current drive
Machine Weight	650kg
Power supply	AC100V, 50/60Hz, 15A
Measurement accuracy	0.1μｍ

Thiết bị kiểm tra bánh răng Tokyo Technical TTi-150H

Model: TTi-150H

Hãng sản xuất: Tokyo Technical

Thông số kỹ thuật:

Test item	Spur/ Helical gear, Internal gear: Profile, Lead, Pitch Electronic generating DDC loop system
Measuring system	Electronic generating DDC loop system /NDG Measuring System
Measuring module	m0.2〜4.0
Base circle dia.	TTi-120E / Φ120mm （outer diameter Φ130mm） TTi-150E / Φ150mm （outer diameter Φ160mm）
Helix angle	±65°（90°）
Gear width	200mm Max
Shaft length	10〜260mm
Max gear weight	20kg Max
Drive system	onstant-current drive
Machine Weight	650kg
Power supply	AC100V, 50/60Hz, 15A
Measurement accuracy	0.1μｍ
