Thiết bị kiểm tra ESD Prostat PFC-252

Thiết bị kiểm tra ESD Prostat PFC-252

Model: PFC-252

Hãng sản xuất: Prostat

Thông số kỹ thuật:

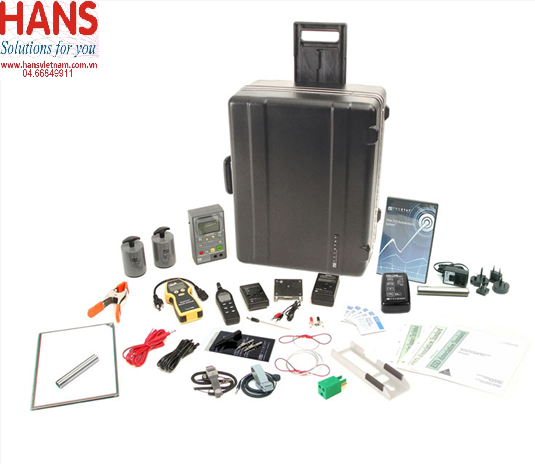

The PFC-252 includes Prostat's PRS-812 Resistance System Set with modified 5 pound conductive rubber electrodes and Prostat’s Cable Spacers for exact measurements. The PRS-812 wide range resistance system can take measurements at 10 and 100 volts with accuracy within ±5%.
Also included is the PFK-100 Field Meter Set. The PFK-100 set includes Prostat's unique PFM-711A dual range field meter, CPM-720A charged plate monitor assembly and PCS-730 ±1 kv charging source. With this instrument set you can measure electrostatic fields, analyze ionizer performance and assess the voltage generation of materials, equipment and personnel.
The PGA-710B is a unique electrostatic data analysis device for use with Prostat’s PFK-100 Fieldmeter/Charge Plate Monitor Set. It records, plots, analyzes and automatically constructs reports of body voltage generation, electrostatic decay, voltage retention, ionizer performance and other static measuring functions. Its analytical features document and automatically calculate projected levels of typical Human Body (HBM) voltages. It helps determine the risk of equaling or exceeding damaging or hazardous HBM discharge voltages in static sensitive facilities on the floor.
The PFC-252 Professional Floor Certification Kit is shipped with an Operator's Manual, Prostat’s exclusive Floor Test Manual and the ANSI/ESD S7.1, ANSI/ESD STM97.1 and ANSI/ESD STM97.2 ESD Association Standard Test Methods
