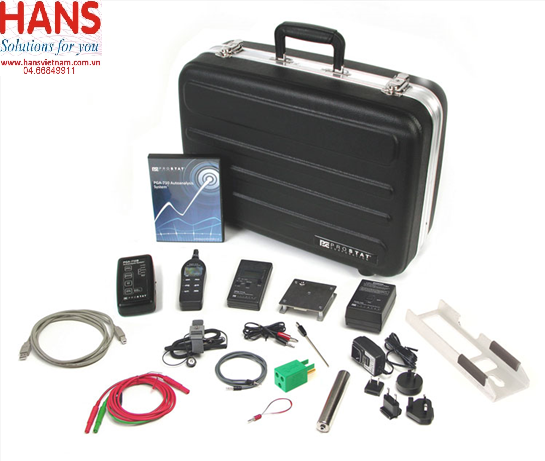

Thiết bị kiểm tra ESD Prostat PGA-710

Thiết bị kiểm tra ESD Prostat PGA-710

Model: PGA-710

Hãng sản xuất: Prostat

Thông số kỹ thuật:

The PGA-710B can be used as a freestanding data logger or recorder for later downloading to your computer. It will communicate with your computer via USB or RS-232 COM port.

The PGA-710B’s unique software will instantly perform mathematical and statistical functions to assist ESD Program Managers and Plant Auditors in defining strengths and weaknesses of the ESDS device transport and handling process. The PGA-710B will calculate the 3-Sigma ranges of Walking and Standing body voltages in your facility, graphically plot the percent probability of equaling or exceeding specific body voltages in the process, and calculate the maximum, minimum and average of voltage generation or decay times.
The PFK-100 set includes Prostat's unique PFM-711A Dual Range Field Meter, CPM-720A Charged Plate Monitor assembly and PCS-730 ±1 kv Charging Source. With this instrument set you can measure electrostatic fields, analyze ionizer performance and assess the voltage generation of materials, equipment and personnel.
The battery operated PFM-711A Field Meter is a compact "electronic chopper" design with accuracy of +/- 2% at ambient conditions (23ºC and 30%Rh). It features automatic polarity, measurement "hold" button, low battery indicator, high and low ranges, distance ranging lights for accurate and repeatable measurements, manual zero control and a ground snap. With the supplied analog output cable, it can be used in conjunction with an X-Y plotter or any analog data-recording device.
The CPM-720A Charge Plate Assembly is 3.25 inches square. It attaches to the PFM-711A field meter for ionizer balancing per ANSI/ESD-S3.1, voltage or charge generation and voltage suppression analysis.
The PCS-730 +/- 1 kV Charging Source is used to charge the CPM-720A to +/- 1,000 volts to measure ionizer decay and material decay. These three instruments are match calibrated to work together for accurate and efficient auditing.

MEASURE, RECORD, ANALYZE & REPORT ELECTROSTATIC VOLTAGE GENERATION AND DECAY PERFORMANCE ON:
Footwear and Flooring Combinations
Carts and Chairs
Packaging Materials & Systems
Production Aids
Worksurface Voltage Supression
Ionization Offset Voltage & Decay Performance
Production Aids & Materials
Record Process Equipment Field Voltage
