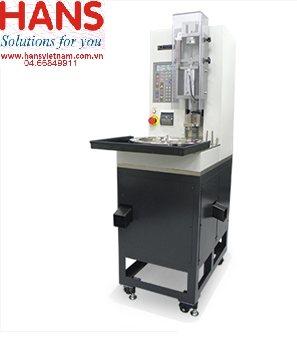

Thiết bị kiểm tra lò xo JISC ACE series

0₫

Nhà Sản Xuất JISC
Mã Sản Phẩm ACE series

Thiết bị kiểm tra lò xo JISC ACE series

Model: ACE series

Hãng sản xuất: JISC

Thông số kỹ thuật:

Type name	ACE-F100N	ACE-F500N	ACE-F1KN
Load capability	100N (10kgf)	500N (50kgf)	1000N (100kgf)
Minimum display load	0.001N (0.1gf)	0.01N (1gf)	0.01N (1gf)
Length resolution	0.01mm
Unit selection	Load N (overseas specifications gf, kgf allowed)
Test number	Per minute about 50 (it varies depending on the stroke)
Stroke	Cylinder 70mm, motor 180mm
Maximum selection outer diameter	φ36mm
Power-supply voltage	AC100 ~ 120V or AC200 ~ 240V
Size	W520 × D660 × H1354 (chute portion included)

Thiết bị kiểm tra lò xo JISC ACE series

Model: ACE series

Hãng sản xuất: JISC

Thông số kỹ thuật:

Type name	ACE-F100N	ACE-F500N	ACE-F1KN
Load capability	100N (10kgf)	500N (50kgf)	1000N (100kgf)
Minimum display load	0.001N (0.1gf)	0.01N (1gf)	0.01N (1gf)
Length resolution	0.01mm
Unit selection	Load N (overseas specifications gf, kgf allowed)
Test number	Per minute about 50 (it varies depending on the stroke)
Stroke	Cylinder 70mm, motor 180mm
Maximum selection outer diameter	φ36mm
Power-supply voltage	AC100 ~ 120V or AC200 ~ 240V
Size	W520 × D660 × H1354 (chute portion included)
