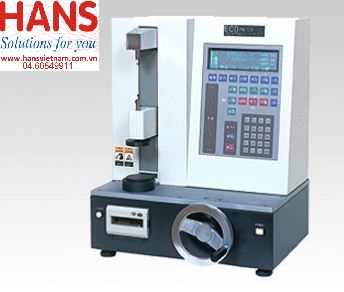

Thiết bị kiểm tra lò xo JISC ECO series

0₫

Nhà Sản Xuất JISC
Mã Sản Phẩm ECO series

Thiết bị kiểm tra lò xo JISC ECO series

Model: ECO series

Hãng sản xuất: JISC

Thông số kỹ thuật:

Type name	ECO-10N	ECO-50N	ECO-100N	ECO-500N	ECO-1KN
Load capability	10 N (1Kgf)	50 N (of 5 kgf)	100N (10kgf)	500N (50kgf)	1000N (100kgf)
Minimum load display	0.1mN (0.01gf)	1mN (0.1gf)		10mN (1gf)
Measurement unit	mN, N
Minimum reading length (mm)	0.01
The upper and lower compression plate diameter (mm)	Above φ30 / under φ60	φ60
Maximum measurement length (mm)	150 (Ltype: 300) the length of the custom is on top of the consultation
Power-supply voltage	AC100 ~ 240V (50 / 60Hz)
Maximum power consumption	100VA
Standard size (mm)	× D300 × W450 H570 (excluding the handle portion)
Standard weight	About 50kg
