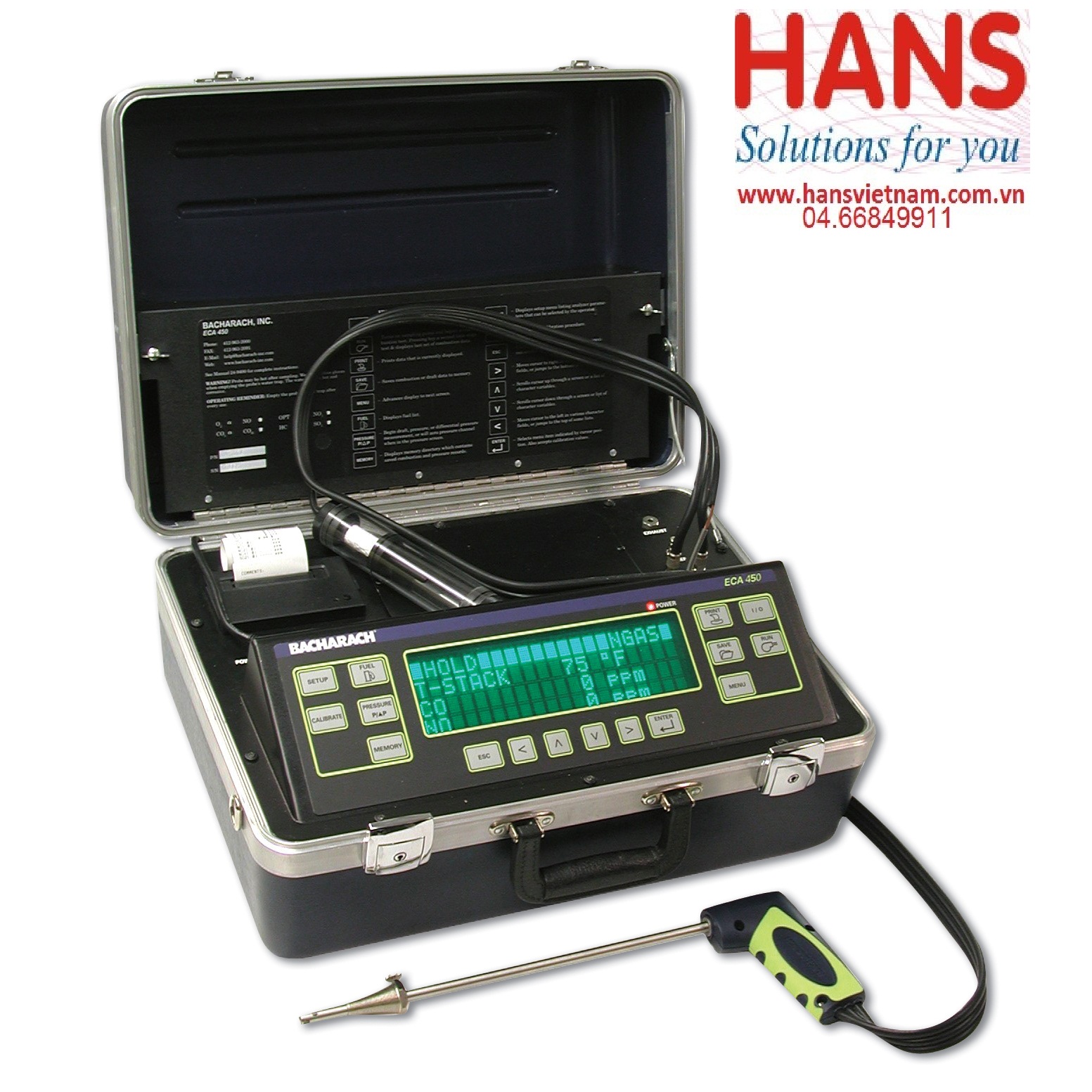

Thiết bị phân tích khí cháy Bacharach ECA450

0₫

Nhà Sản Xuất Bacharach
Mã Sản Phẩm ECA450

Thiết bị phân tích khí cháy Bacharach ECA450

Model: ECA450

Hãng sản xuất: Bacharach

Thông số kỹ thuật:

Measurements:

O2 CO (low-range, H2compensated) CO (high-range, optional) NO (optional) NO2 (optional) SO2 (optional) Combustibles (optional) Stack temperature Primary/ambient air temperature Draft/differential pressure	0 to 20.9% 0 to 4000 ppm 4001 to 80,000 ppm 0 to 3500 ppm 0 to 500 ppm 0 to 4000 ppm 0 to 5% vol. (application dependent) -4 to 2400°F (-20 to 1215°C) -4 to 999°F (-20 to 537°C) 27.7 inH2O(±69 mbar)
Power	Internal rechargeable battery or via supplied wall adapter
Run Time	8 hours minimum
Size (H x W x D)	13.5 x 18.5 x 9 in. (34.3 x 47.0 x 22.9 cm)
Weight	25 lb. (11.3 kg)
Fuels[1]	Natural gas, coal, oil 2/4/5/6, wood, kerosene, bagasse, propane, LPG, KOKS, LEG, biofuel
Operating Conditions	Analyzer: 32 to 104 °F (0 to 40 °C), 15 to 90% RH (non-condensing), 1 ATM ± 10% Probe tip[2]: 1472 °F (800 °C) maximum, 10 inH2O (25 mbar) maximum draft
Warm-up Time	60 seconds
Memory	1000 locations
Communications	RS-232
Approvals	CE mark

Thiết bị phân tích khí cháy Bacharach ECA450

Model: ECA450

Hãng sản xuất: Bacharach

Thông số kỹ thuật:

Measurements:

O2 CO (low-range, H2compensated) CO (high-range, optional) NO (optional) NO2 (optional) SO2 (optional) Combustibles (optional) Stack temperature Primary/ambient air temperature Draft/differential pressure	0 to 20.9% 0 to 4000 ppm 4001 to 80,000 ppm 0 to 3500 ppm 0 to 500 ppm 0 to 4000 ppm 0 to 5% vol. (application dependent) -4 to 2400°F (-20 to 1215°C) -4 to 999°F (-20 to 537°C) 27.7 inH2O(±69 mbar)
Power	Internal rechargeable battery or via supplied wall adapter
Run Time	8 hours minimum
Size (H x W x D)	13.5 x 18.5 x 9 in. (34.3 x 47.0 x 22.9 cm)
Weight	25 lb. (11.3 kg)
Fuels[1]	Natural gas, coal, oil 2/4/5/6, wood, kerosene, bagasse, propane, LPG, KOKS, LEG, biofuel
Operating Conditions	Analyzer: 32 to 104 °F (0 to 40 °C), 15 to 90% RH (non-condensing), 1 ATM ± 10% Probe tip[2]: 1472 °F (800 °C) maximum, 10 inH2O (25 mbar) maximum draft
Warm-up Time	60 seconds
Memory	1000 locations
Communications	RS-232
Approvals	CE mark
