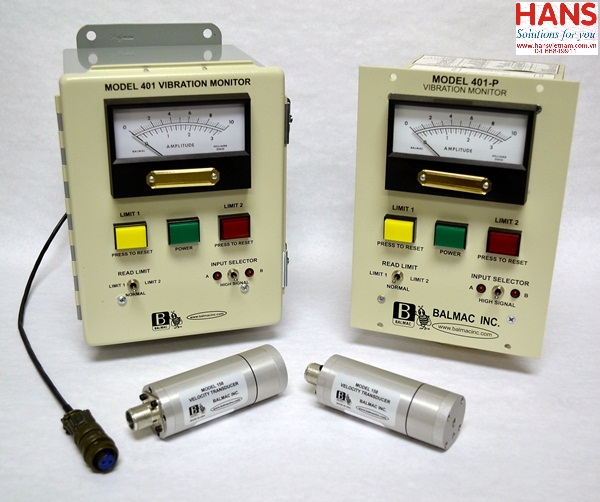

Transmitters and Monitoring Systems Balmac 401 & 401P
Model: 401 & 401P
Hãng sản xuất: Balmac
Thông số kỹ thuật:
Pickup inputs: 2 Balmac Model 158 Vibration Transducers
Accuracy: 5% of Full Scale
Frequency
Range: 120 to 120,000 RPM
Display: Displacement (mils) (peak-to-peak)
Velocity (in/sec) (peak)
0 to 10 upper scale
0 to 3 lower scale
Full scale: 0.1; 0.3; 1; 3; 10; 30; 100
Output: 0-1 Vdc for 0 to F.S. reading
Relay action: 2 Relays - Limit 1 and Limit 2
Form C Contacts - 3 A 110 Vac
Latch or Non-latch
