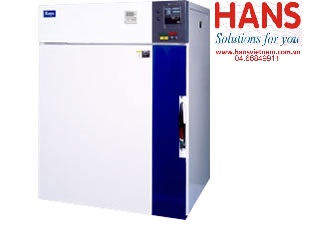

Tủ sấy Koyo Thermo HTO Series

Method

Convection (Side-flow)

Max. operation Temperature(*1)

500°C

Normal operation Temperature(*1)

RT+30~500°C

Temperature distribution (Reference)(*2)

±6°C(at 500°C)

Heat up time (Reference)(*1)

Within 90 minutes (RT+30~500°C)

Control System

Temperature Programmer

Shelf plate withstand load (Uniformly-distributed load)

15kg/1 sheet

Thermocouple

K

Standard accessory

Shelves (with shelf plates)

(*1) Temperature at the control point within the heating chamber.
(*2) Valid dimension is two-thirds inside dimension.
☆ Thermocouples are consumable items.

Type

HTO-9B

HTO-15B

Heater Power

5.0kW(at 200V)

6.3kW(at 200V)

Outer dimension (mm)

900(W)×1250(H)×750(D)

950(W)×1350(H)×850(D)

Inside dimension (mm)

450(W)×500(H)×400(D)

500(W)×600(H)×500(D)

Equipment weight

approx. 150kg

approx. 250kg

Breaker capacity

AC 200V 40A
1ø 50/60Hz

AC 200V 50A
1ø 50/60Hz
