Turbine flow meters Watts Water MTW-V

0₫

Nhà Sản Xuất Watts Water
Mã Sản Phẩm MTW-V

Mô tả
Bình luận

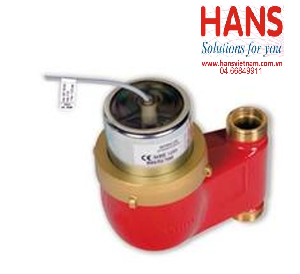

Turbine flow meters Watts Water MTW-V

Model: MTW-V

Hãng sản xuất: Watts Water

Thông số kỹ thuật:

Multi-jet turbine water flow meter. Dry-dial direct reading with magnetic transmission.

Brass body with nuts and sleeves.

Complete with pulse transmitter (2.5-25 litres). DN 15-50 threaded connectors. Flow rate range: 1.5-15 m³/h.

Designed for vertical installation with inlet from bottom.

Maximum fluid temperature: 90°C.

Nominal pressure: PN 16. Provided with a pulse transmitter.

Conformity according to European Measuring Instruments (MID) 2004/22/CE

Type	Part no.	DN	Qn (m³/h)	lt pulses
MTW-V	MTW-V20E	20	2,5	2,5
MTW-V	MTW-V20V	20	2,5	2,5
MTW-V	MTW-V25E	25	3,5	2,5
MTW-V	MTW-V25V	25	3,5	2,5
MTW-V	MTW-V32E	32	6	25
MTW-V	MTW-V32V	32	6	25
MTW-V	MTW-V40E	40	10	25
MTW-V	MTW-V40V	40	10	25

Tags: Orther
