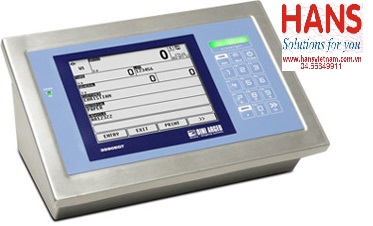

Backlit graphic display with touch screen technology, lxh= 120x90mm size.
Multilanguage software.
15-key alphanumerical waterproof keyboard.
3-way control light.
QWERTY keyboard integrated in the touch screen.
Stainless steel waterproof IP68 enclosure, with new IP68protection system.
Dimensions: 264x115x174 mm.
Suitable for use on the table, column, or wall.
Real time clock and permanent data storage.
Fitted alibi memory, integrated on the motherboard.
Built-in micro SD for recording the configuration, logos, and customized screens (upon request).
Functions available with DINITOOLS utility
- Configuration, data entry and print formatting.
- Recording and filing of all the information on PC.
- Complete retrieval of the configuration.
- Instrument calibration with numeric values.
- Customization of the screens.
24-bit A/D converter, 4 channels, up to 3200 conv./sec. and up to 8 signal linearisation points.
4 independent analogue channels for reading of the weight.
Connection with up to 16 analogue load cells of 350 Ohm (45 load cells of 1000 Ohm).
Up to 10.000e OIML or 3 x 3000e @ 0,3 µV/d CE-M legal for trade.
Up to 1.000.000 displayable divisions for internal factory use, with internal resolution up to 3.000.000 points.
Connectable to printers and labellers with free programmation of the printout formats.
110-240 Vac power supply. |
