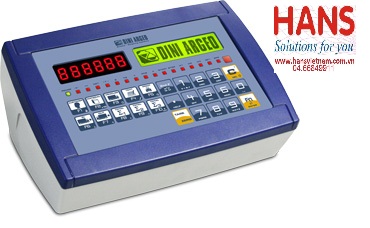

Weight indicator Dini Argeo 3590EXPN

Model: 3590EXPN

Hãng sản xuất: Dini Argeo

Thông số kỹ thuật:

COMPLETELY CUSTOMIZABLE high performance digital weight indicator, suitable for OEM application. Fitted with programmable inputs and outputs, 3 serial ports, transmission protocols for data communication, completely configurable printouts, integrated alibi memory, graphic display and port for connection to barcode/badge reader. The wide range of connectable accessories and printers guarantees the maximum interfaceability and versatility. CE-M approvable (OIML R-76 / EN 45501).

MAIN FEATURES

25-key alphanumerical waterproof keyboard, with:
- completely customizable layout in the 3590EXPN version;
- customized layout for vehicle weighing systems in the 3590EXPNAF03 version.

Highly efficient red led display with 6 digits 15mm high.

Backlit LCD graphic 25x100mm display.

Synoptic bar graph with 16 bright LEDs showing the active functions.

Easy to clean ABS waterproof IP65 enclosure; resistant to harsh and corrosive environments.

Dimensions: 278x125x186 mm.

Suitable for use on the table, column or wall.

Real time clock and permanent data storage.

Fitted alibi memory, integrated on the motherboard.

Development area for implementation of the customized application software.

Functions available with DINITOOLS utility
- Configuration, calibration, data entry and print formatting.
- Recording and filing of all the information on PC.
- Complete retrieval of the data saved for quick substitution.
- Instrument calibration with numeric values.

Selection of the programme language directly in the set-up.

24-bit A/D converter, 4 channels, up to 3200 conv./sec. and up to 8 signal linearisation points.

4 independent analogue channels for reading of the weight.

Connection with up to 16 analogue load cells of 350 Ohm (45 load cells of 1000 Ohm) and with the main digital load cells available on the market.

Up to 10.000e OIML or 3 x 3000e @ 0,3 µV/d CE-M legal for trade.

Up to 1.000.000 displayable divisions for internal factory use, with internal resolution up to 3.000.000 points.

110-240 Vac power supply; built-in rechargeable battery for use in absence of the power mains.

I/O SECTION

Two RS232 serial ports, for connection to printer, radio module, PC or PLC, badge reader or remote scale, with management of the CTS signal.

One RS232/RS485 serial port, for connection to printer, PC, PLC, or digital load cells.

Fitted PC keyboard input, for barcode/badge readers or external PC keyboard, through cable with mini DIN connector (optional).

4 optoisolated outputs.

2 optoisolated inputs.

Infrared ray input, for optional remote control.
