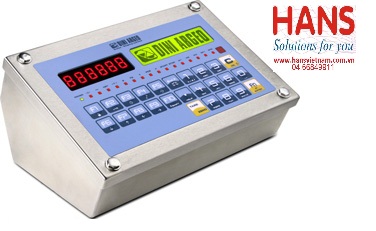

Weight indicator Dini Argeo 3590EXT3GD

Model: 3590EXT3GD

Hãng sản xuất: Dini Argeo

Thông số kỹ thuật:

Weight indicator for ATEX areas classified at risk of explosion with protection methods according to
ATEX II 3G Ex nR IIC T6 Gc X
ATEX II 3D Ex tc IIIC T135°C Dc IP68 X.
The wide range of available software program guarantees the maximum versatility. Completely programmable printouts and fitted with alibi memory. CE-M approvable (OIML R-76 / EN 45501).

MAIN FEATURES

25-key alphanumerical waterproof keyboard.

Highly efficient red LED display with 6 digits 15mm high.

Backlit LCD graphic 25x100mm display.

Synoptic bar graph with 16 bright LEDs showing the active functions.

Easy to clean STAINLESS STEEL waterproof IP68 enclosure; resistant to harsh and corrosive environments.

Dimensions: 264x115x174 mm.

Suitable for use on the table, column, or wall.

Real time clock and permanent data storage.

Fitted with alibi memory, integrated on the motherboard.

Functions available with DINITOOLS utility
- Configuration, calibration, data entry and print formatting.
- Recording and filing of all the information on PC.
- Complete retrieval of the saved data for quick replacement.
- Instrument calibration with numeric values.

Easy Excel data entry: the indicator communicates directly with the active Windows application (electronic spreadsheet, word processor, database).

Selection of the programme language directly in the set-up.

24-bit A/D converter, 4 channels, up to 200 conv./sec. and up to 8 signal linearisation points.

Up to 10.000e OIML or 3 x 3000e @ 0,3 µV/d CE-M legal for trade.

Up to 1.000.000 displayable divisions for internal factory use, with internal resolution up to 3.000.000 points.

110-240 Vac power supply.

Management of up to 4 independent scales (up to 2 for the AF03 version).

Connectable with up to 16 analogue 350-Ohm (or 45 1000-Ohm) load cells.

Connectable to printers and labellers with the command drivers.

OPTIONS

Ethernet interface

Analogue output with D/A converter at 16 bit, 0-10Vdc, 0-20mA, 4-20mA (available for the IO versions).

Code

Description

3590EXT01BC3GD

Weight indicator for ATEX zones in the AF01 version for totalization and dosage systems, with stainless steel IP68 case, 25-key keypad, LED display and backlit graphic LCD display. Protection degree: ATEX II 3G Ex nR IIC T6 Gc X for gases and ATEX II 3D Ex tc IIIC T135°C Dc IP68 X for dust. Fitted with manuals and conformity declaration (available in IT, EN, FR).

3590EXT01BCIO3GD

3590EXT03BC3GD

Weight indicator for ATEX zones in the AF03 version for vehicle weighing systems, with stainless steel IP68 case, 25-key keypad, LED display and backlit graphic LCD display. Protection degree: ATEX II 3G Ex nR IIC T6 Gc X for gases and ATEX II 3D Ex tc IIIC T135°C Dc IP68 X for dust. Fitted with manuals and conformity declaration (available in IT, EN, FR).

3590EXTBATCH1BC3GD

Weight indicator for ATEX zones in the BATCH1 version for single product dosage systems in loading or unloading, with stainless steel IP68 case, 25-key keypad, LED display and backlit graphic LCD display. Protection degree: ATEX II 3G Ex nR IIC T6 Gc X for gases and ATEX II 3D Ex tc IIIC T135°C Dc IP68 X for dust. Fitted with manuals and conformity declaration (available in IT, EN, FR).

3590EXTBATCHBCIO3GD

Weight indicator for ATEX zones in the BATCH version for multi product dosage in loading and unloading, with stainless steel IP68 case, 25-key keypad, LED display and backlit graphic LCD display. Protection degree: ATEX II 3G Ex nR IIC T6 Gc X for gases and ATEX II 3D Ex tc IIIC T135°C Dc IP68 X for dust. Fitted with manuals and conformity declaration (available in IT, EN, FR). Fitted with 16 outputs and 8 inputs.
