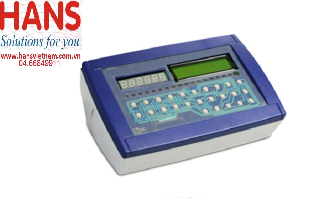

Weight indicator Dini Argeo DFWLB

Digital weight indicator for industrial environments, easy to install and use. The IP68 protection degree and the built-in long life battery make it particularly suitable for automotive and mobile weighing applications. Standard fitted with a support bracket with adjustable inclination. CE‐M approvable (OIML R‐76 / EN 45501).

5-key functional waterproof keypad.

Backlit 25mm LCD display with 6 high contrast digits with icons for showing the active functions.

Easy to clean ABS IP68 case, resistant to harsh and corrosive environments.

Suitable for use on the table, column, or wall.

Fitted with fixing bracket with adjustable inclination.

A/D 24 bit, 4 channel converter, max. 200 conv./sec. autoselect, and up to 8 signal linearisation points.

Up to 10.000e or multirange 3 x 3000e @ 0,3 µV/d in CE-M approved versions for legal for trade use.

Up to 1.000.000 displayable divisions with internal resolution up to 3.000.000 points.

Connection with up to 8 load cells with input resistance equal to 350 Ohm or up to 16 cells of 700 Ohm each.

Digital calibration and Set-Up from keypad or from PC through DINITOOLS.

Power supply through built-in rechargeable battery, with 60h operating time, and fitted with external 12Vdc battery charger.

MAIN FUNCTIONS:
- Zeroing
- Automatic tare
- Presettable tare
- Printing in 1, 2 or 3 copies
- Data transmission to PC.

OPERATING MODES:
- High Resolution Weighing x 10
- Net/Gross or lb/kg conversion
- Accumulation
- Formula weighing
- +/- Checkweighing
- Percentage weighing
- Approved transmission of the weight to PC/PLC or data recording on MMC/USB (with Alibi memory ALMEM option)
- Counting
- In/Out Truck weighing
- Hold and Peak.

RS232/C bidirectional port on RJ connector for quick connection (or USB as an extra option) or RS485 on screw terminal, configurable for PC, PLC, or additional remote display.

RS232/C bidirectional port configurable for connection to printer or labeller.

IR input for remote control
